Location：Home--->Product Center >> Electrical Component sourcing >> IPL1-106-01-L-D-K
Name:IPL1-106-01-L-D-K

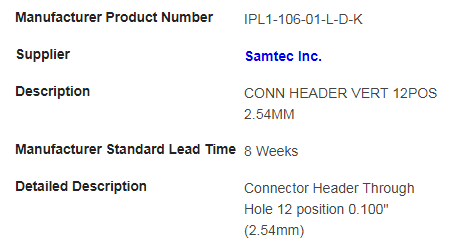

Manufacturer Product NumberIPL1-106-01-L-D-K
Number of Positions12
Number of Rows2
Pitch - Mating0.100"" (2.54mm)
Row Spacing - Mating0.100"" (2.54mm)
Contact Length - Mating0.215"" (5.46mm)
Contact Length - Post0.120"" (3.05mm)
Voltage Rating675VAC, 954VDC
Email US:info@kartain.com

Product Description Contact Us

IPL1-106-01-L-D-K

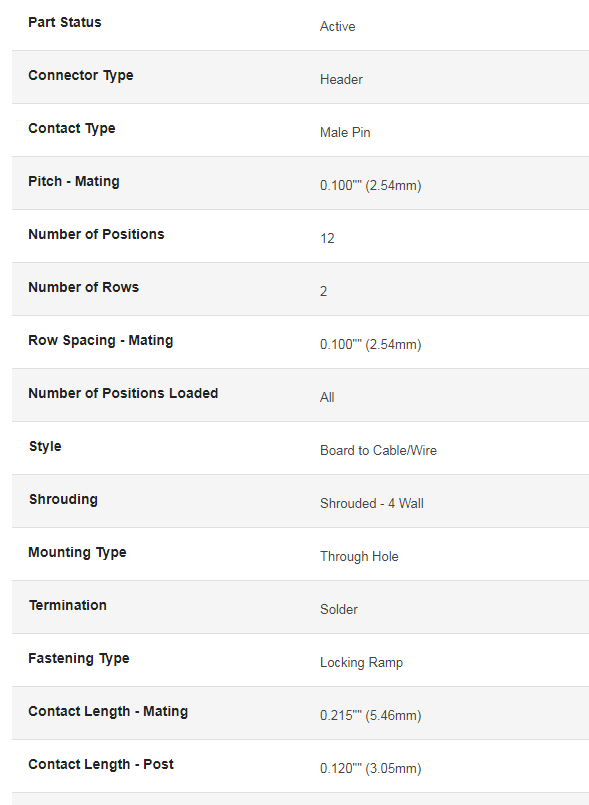

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100"" (2.54mm)
Number of Positions
12
Number of Rows
2
Row Spacing - Mating
0.100"" (2.54mm)
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Locking Ramp
Contact Length - Mating
0.215"" (5.46mm)
Contact Length - Post
0.120"" (3.05mm)

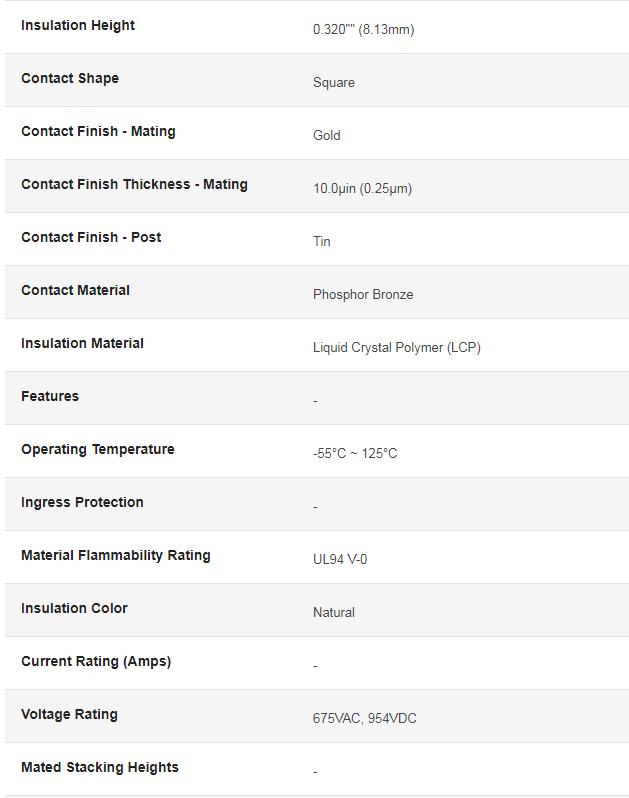

Overall Contact Length
-
Insulation Height
0.320"" (8.13mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
