Product Description Contact Us

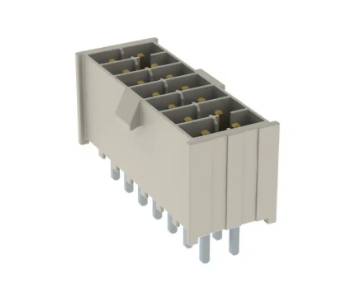

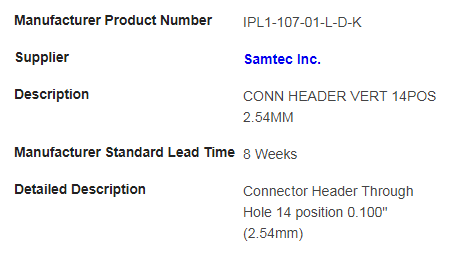

IPL1-107-01-L-D-K
|
|---|

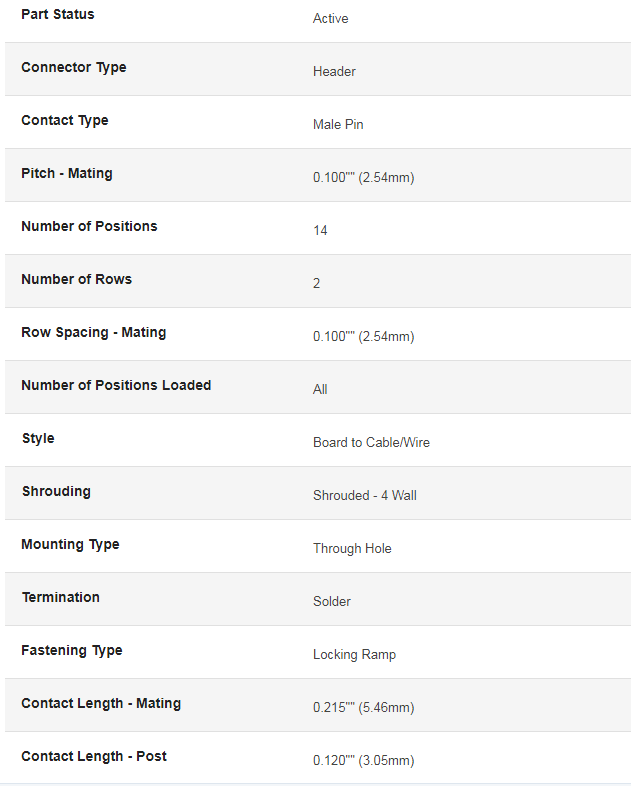

Part Status
|
Active
|
|||||||||
Connector Type
|
Header
|
|||||||||
Contact Type
|
Male Pin
|
|||||||||
Pitch - Mating
|
0.100"" (2.54mm)
|
|||||||||
Number of Positions
|
14
|
|||||||||
Number of Rows
|
2
|
|||||||||
Row Spacing - Mating
|
0.100"" (2.54mm)
|
|||||||||
Number of Positions Loaded
|
All
|
|||||||||
Style
|
Board to Cable/Wire
|
|||||||||
Shrouding
|
Shrouded - 4 Wall
|
|||||||||
Mounting Type
|
Through Hole
|
|||||||||
Termination
|
Solder
|
|||||||||
Fastening Type
|
Locking Ramp
|
|||||||||
Contact Length - Mating
|
0.215"" (5.46mm)
|
|||||||||
Contact Length - Post
|
0.120"" (3.05mm)
|
|||||||||
Overall Contact Length
|
-
|
|||||||||

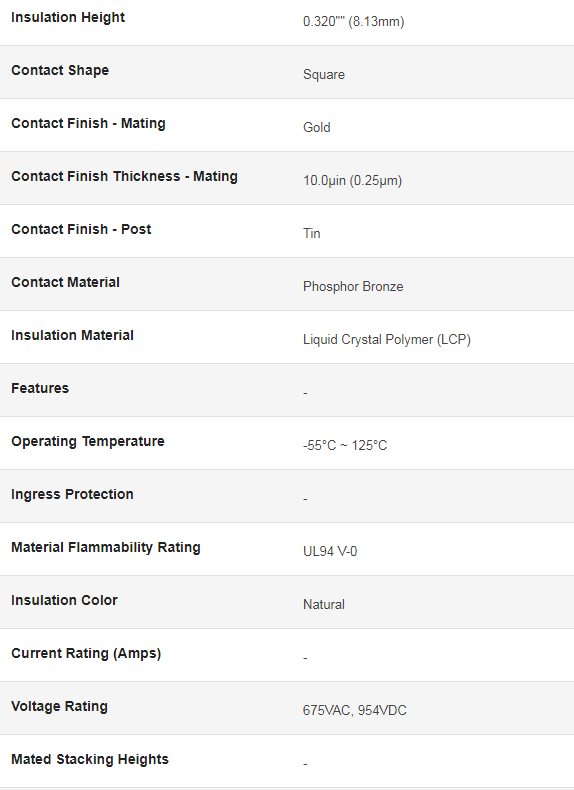

Insulation Height
|
0.320"" (8.13mm)
|
|||||||||
Contact Shape
|
Square
|
|||||||||
Contact Finish - Mating
|
Gold
|
|||||||||
Contact Finish Thickness - Mating
|
10.0µin (0.25µm)
|
|||||||||
Contact Finish - Post
|
Tin
|
|||||||||
Contact Material
|
Phosphor Bronze
|
|||||||||
Insulation Material
|
Liquid Crystal Polymer (LCP)
|
|||||||||
Features
|
-
|
|||||||||
Operating Temperature
|
-55°C ~ 125°C
|
|||||||||
Ingress Protection
|
-
|
