Location：Home--->Product Center >> Electrical Component sourcing >> IPBT-103-H2-T-D-K

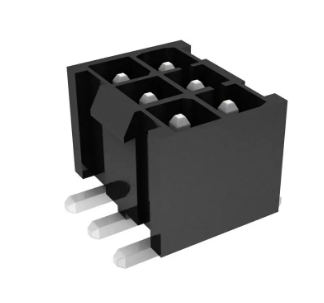

Name:IPBT-103-H2-T-D-K

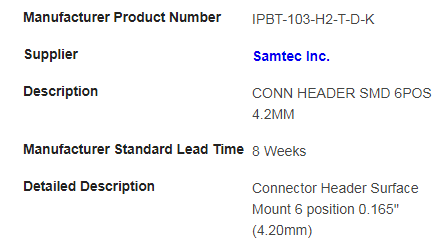

Manufacturer Product NumberIPBT-103-H2-T-D-K
Number of Positions6
Number of Rows2
Pitch - Mating0.165"" (4.20mm)
Row Spacing - Mating0.165"" (4.20mm)
Contact Length - Mating0.260"" (6.60mm)
Voltage Rating400VAC, 565VDC
Email US:info@kartain.com

Product Description Contact Us

IPBT-103-H2-T-D-K

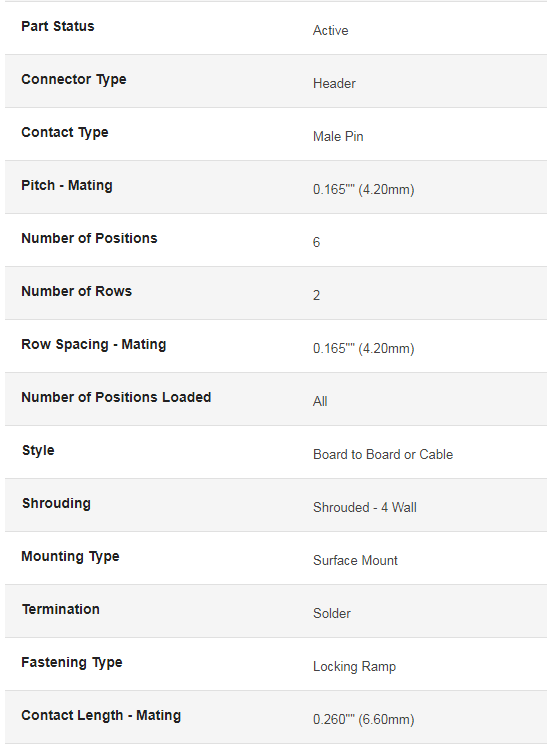

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.165"" (4.20mm)
Number of Positions
6
Number of Rows
2
Row Spacing - Mating
0.165"" (4.20mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Locking Ramp
Contact Length - Mating
0.260"" (6.60mm)
Contact Length - Post
-
Overall Contact Length
-

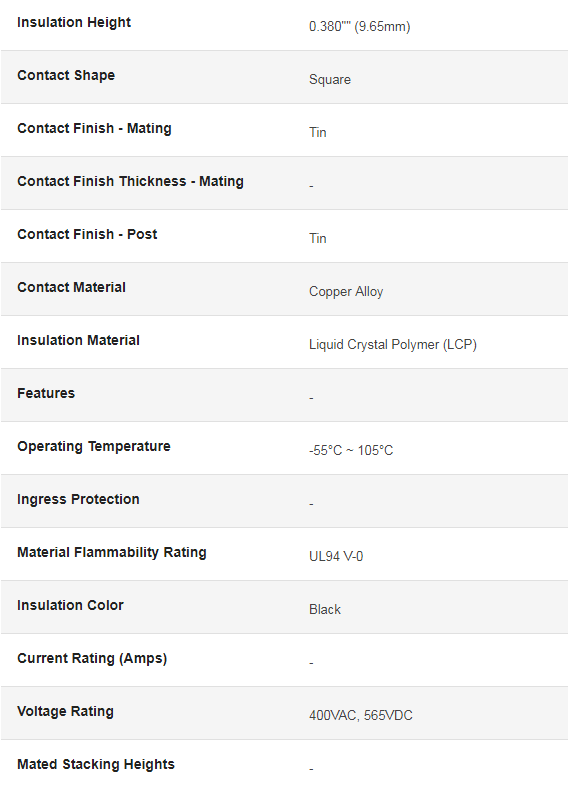

Insulation Height
0.380"" (9.65mm)
Contact Shape
Square
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
