Location：Home--->Product Center >> SMT & Thru-hole >> LED sport lighting PCB fabrication
Name:LED sport lighting PCB fabrication
Material IMS typeAluminum,Copper,CEM3,FR4,Ceramic,BT,halogen-free
Material IMS BrandVentec,Bergquist,POLYTRONICS,Shengyi,Boyu
Dielectric Thickness50um,75um,100um,125um,180um,200um,230um
PCB Thicness0.1mm-0.4mm bending,0.5mm-2.0mm standard,3.0mm above special
Copper weight0.5oz-6oz standard, 6oz above special
Max lengthsingle layer less than 1800mm, double less than 1200mm
Soldermask ColorWhite,Black,Green,Yellow,Blue standard, Silver,transparent,Orange available
Surface finishedHASL,OSP,Immersion Gold,Immersion Silver,NiPdAu
Thermal ConductivityFrom 1.0W/MK to 8.0W/MK
FlammabilityUL 94-V0
Hi-Pot WithstandDC2000-10000V
Breakdown VoltageAC4000-13000V
Email US:info@kartain.com

Product Description Contact Us

LED sport lighting PCB fabrication


LED sport lighting PCB fabrication specification

1 Material IMS type  Aluminum,Copper,CEM3,FR4,Ceramic,BT,halogen-free
2 Material IMS Brand Ventec,Bergquist,POLYTRONICS,Shengyi,Boyu
3 Dielectric Thickness 50um,75um,100um,125um,180um,200um,230um
4 PCB Thicness 0.1mm-0.4mm bending,0.5mm-2.0mm standard,3.0mm above special
5 Copper weight 0.5oz-6oz standard, 6oz above special
6 Max length single layer less than 1800mm, double less than 1200mm
7 Soldermask Color White,Black,Green,Yellow,Blue standard, Silver,transparent,Orange available
8 Surface finished HASL,OSP,Immersion Gold,Immersion Silver,NiPdAu
9 Thermal Conductivity From 1.0W/MK to 8.0W/MK
10 Flammability UL 94-V0
11 Hi-Pot Withstand DC2000-10000V
12 Breakdown Voltage AC4000-13000V
13 Application Ultra bright LED Substrate,Power Conversion,PDP, LED, Regulator for TV,





Monitor Drives,Rectifier, Power Supply,Automative electronic

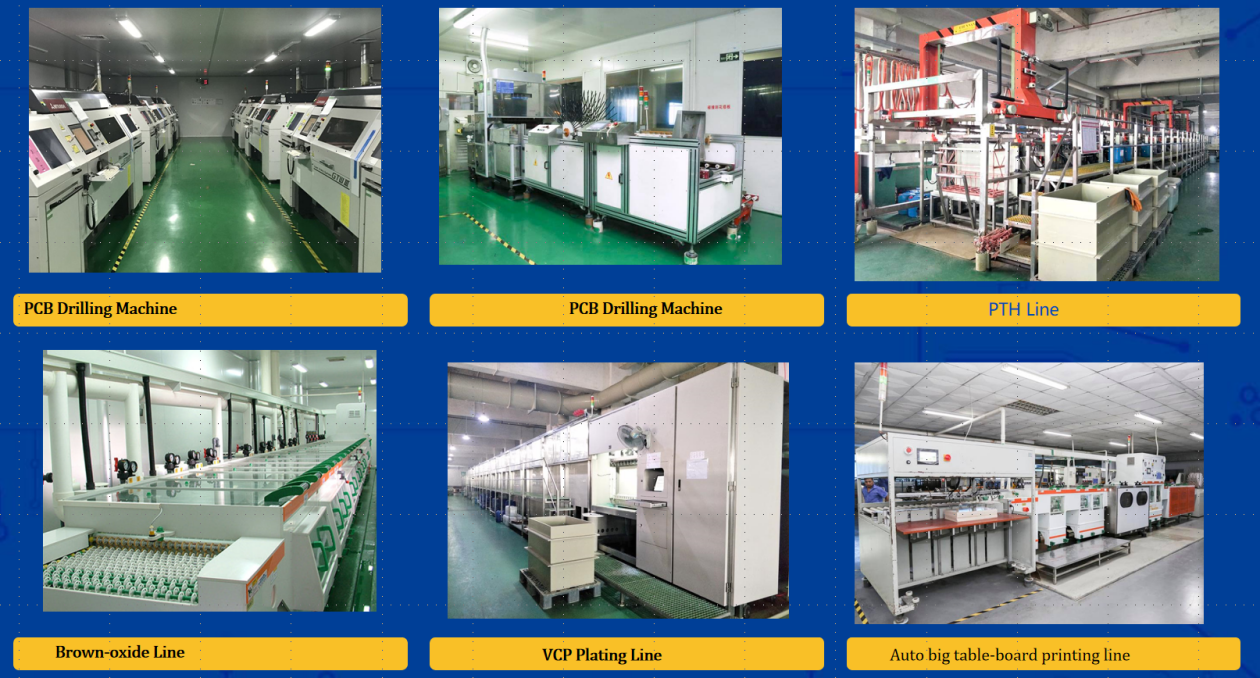

LED PCB production equipment for

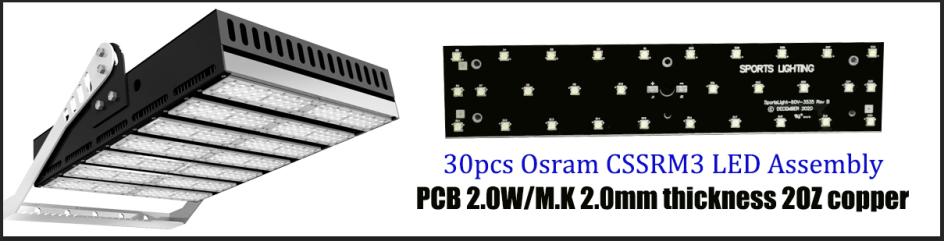

LED sport lighting PCB boards manufacturing

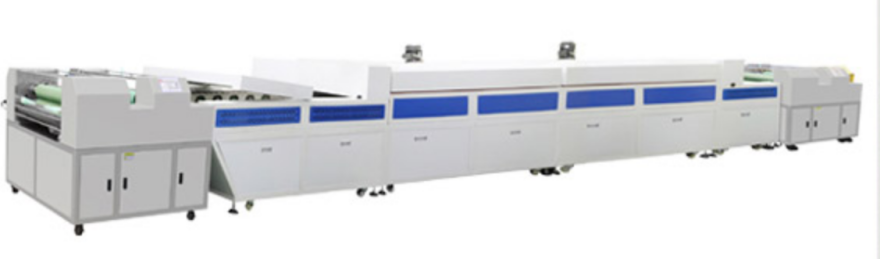

Automatic double sided coating Machine for soldermask for led pcb boards

Automatic double sided coating Machine for soldermask for led pcb


led pcb manufacturing equipment

LED PCB pick up assembly for LED sport lighting PCB boards manufacturing

LED PCB pick up assembly for LED sport lighting PCB boards manufacturing


SMT pick up machine Yamaha,Juki
LED brand available Samsung,CREE,Nichia,Osram,Luminus,Seoul,LG
EVERLIGHT,Lite-On,Hongli,Sanan  etc
Single and double sided SMT/PTH YES
Large parts on both sides, BGA on both sides YES
Smallest Chips size 0201
Assembly surface mount connectors YES
Wave soldering YES
Max PCB size 1200x600mm
Min PCB Thickness 0.1mm
Inspection X-ray, AOI, Microscope to 20X
Reflow soldering Leadfree 10 temperature range

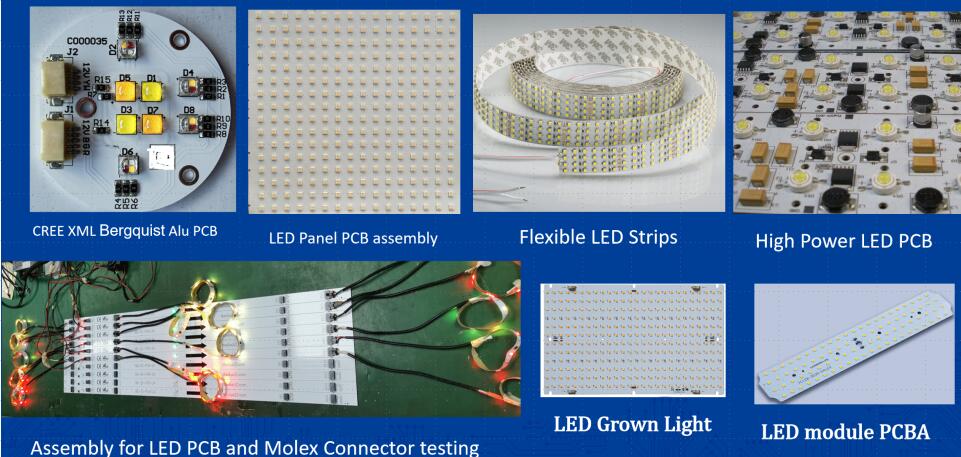

LED PCBA assembly products show

led pcb boards assembly


CONTACT KARTAIN TECHNOLOGY

Kartain is committed to to provide you with exceptional support and satisfaction for your PCB fabrication and PCB assembly needs from QTA prototyping to High volume production.

Our experts are available to consult you for your project. So, call us anytime at 0755-23024958 or  get in touch via email.



More Contact Info:

KARTAIN Factory: #3RD BUILDING HONGCHONG INDUSTRIAL DISTRICT HONGXING SONGGANG TOWN BAOAN,SHENZHEN,GUANGDONG,CHINA-518104

Office:#212 Shuiyuanju Building,Bao'an East ,Shajing Town,Bao'an District,Shenzhen,China.

Tel: +0086(755)2302 4958, 015814406156   wechat: 409387861

Fax:+0086(755)2302 4958

Email: info@kartain.com

Skype: chinacircuit

Whatsapp: +86015814406156

Website: www.kartain.com     www.kartainpcb.com    www.kartainfpc.com

Facebook:https://www.facebook.com/chinapcbmanufacturer/

LinkedIn: https://www.linkedin.com/in/kartainpcb/

pcb wechat
