Name:PBGA package PCB boards
NamePBGA package PCB
MaterialShengyi,BT,Mitsubishi,Toshiba,LG
Layers1-8layer
Boards thk0.05-0.4mm,0.6mm,0.8mm,1.0mm
Copper Weight8-35um,70um
Surface finishedENIG,NiPdAu,Immersion Silver
SoldermaskBlack Taiyo soldermask
Special technicsTenting/Etech back/Buss-less/MSAP/Plugged
Min drilling vias0.05mm
Min pad gap0.05mm
IC substrate packageUDP,CSP,SIP,FMC,LGI,PBGA,SSD,MEMS,MiniLED,SSOP,TSOP,QFP,TQFP
ShippingDHL,TNT,UPS,FedEx,Air shipping,Sea shipping
Payment termsWestern Union,paypal,T/T
Email US:info@kartain.com

Product Description Contact Us

CHINA new supplier specialized in Semiconductor Integrated Circuit,UDP,CSP,SIP,FMC,LGI,PBGA,SSD,MEMS,MiniLED,SSOP,TSOP,QFP,TQFP IC Substrate package,any idea pls contact us.



Application:

They are designed for automotive, industrial automation, networking, health care, and other mission-critical applications,

Memory cards provide removable storage solutions,advanced data reliability and data integrity features,

industrial flash memory cards are portable,

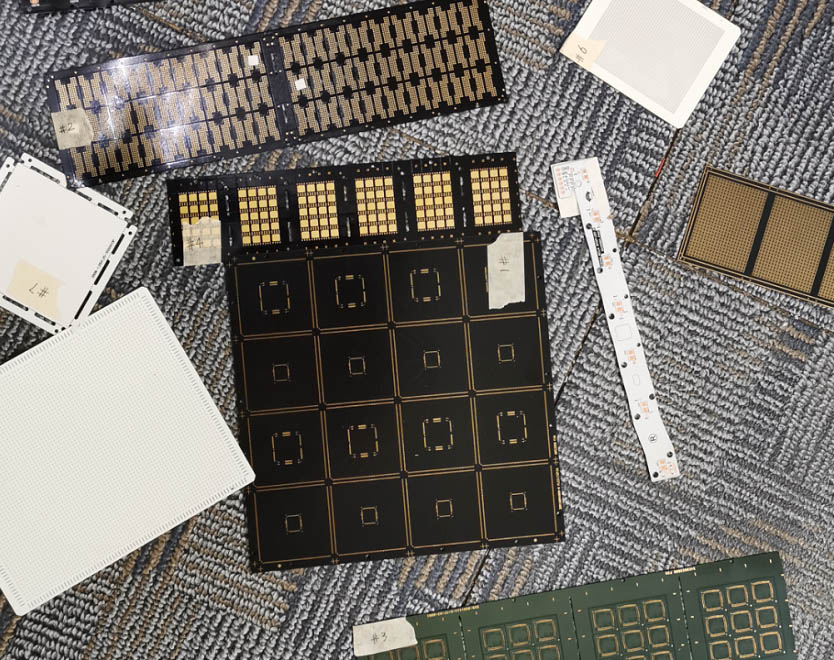

We make the PBGA package PCB boards in CHINA and provide the reliable manufacture solution for Semiconductor Integrated Circuit

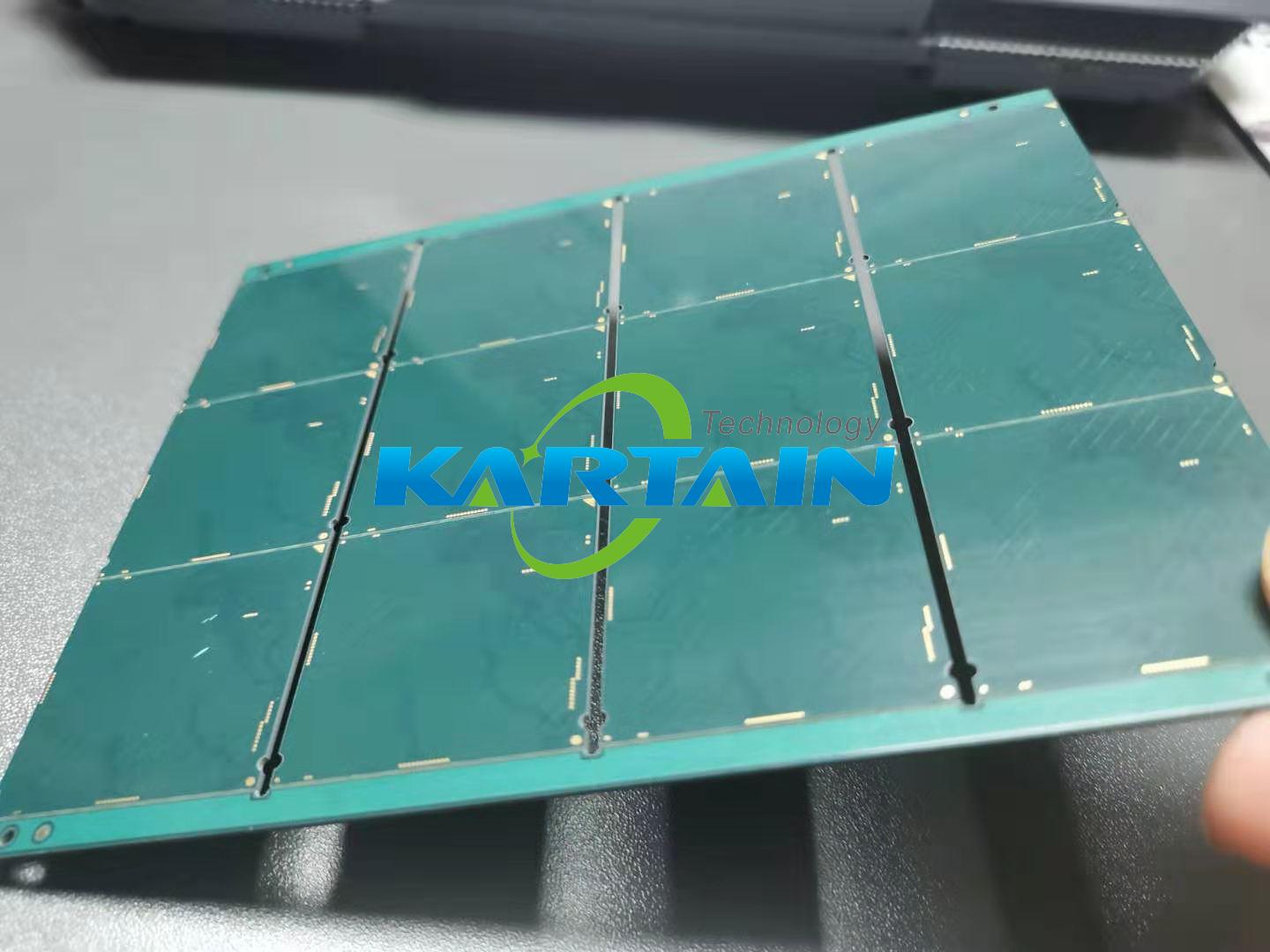

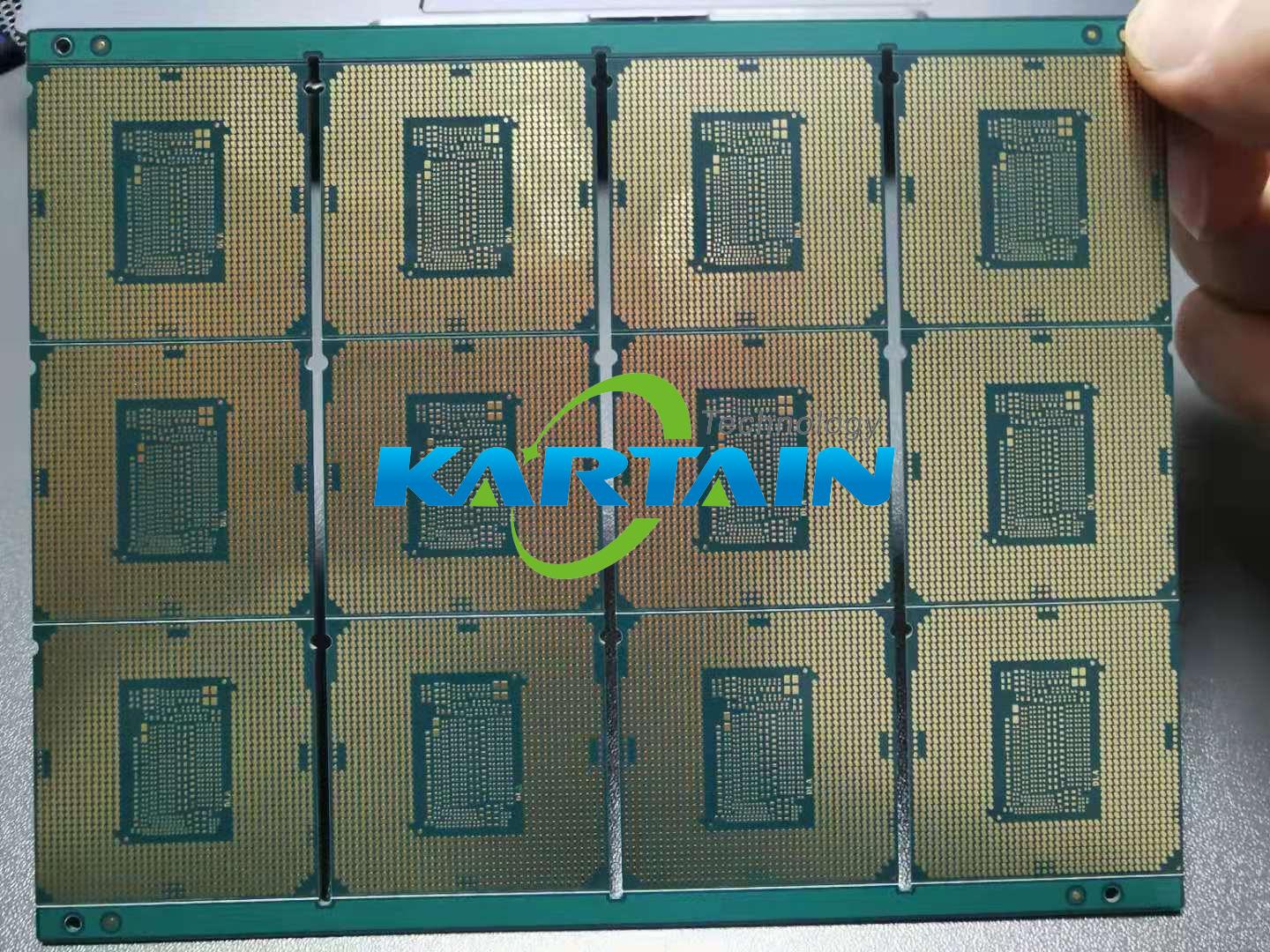

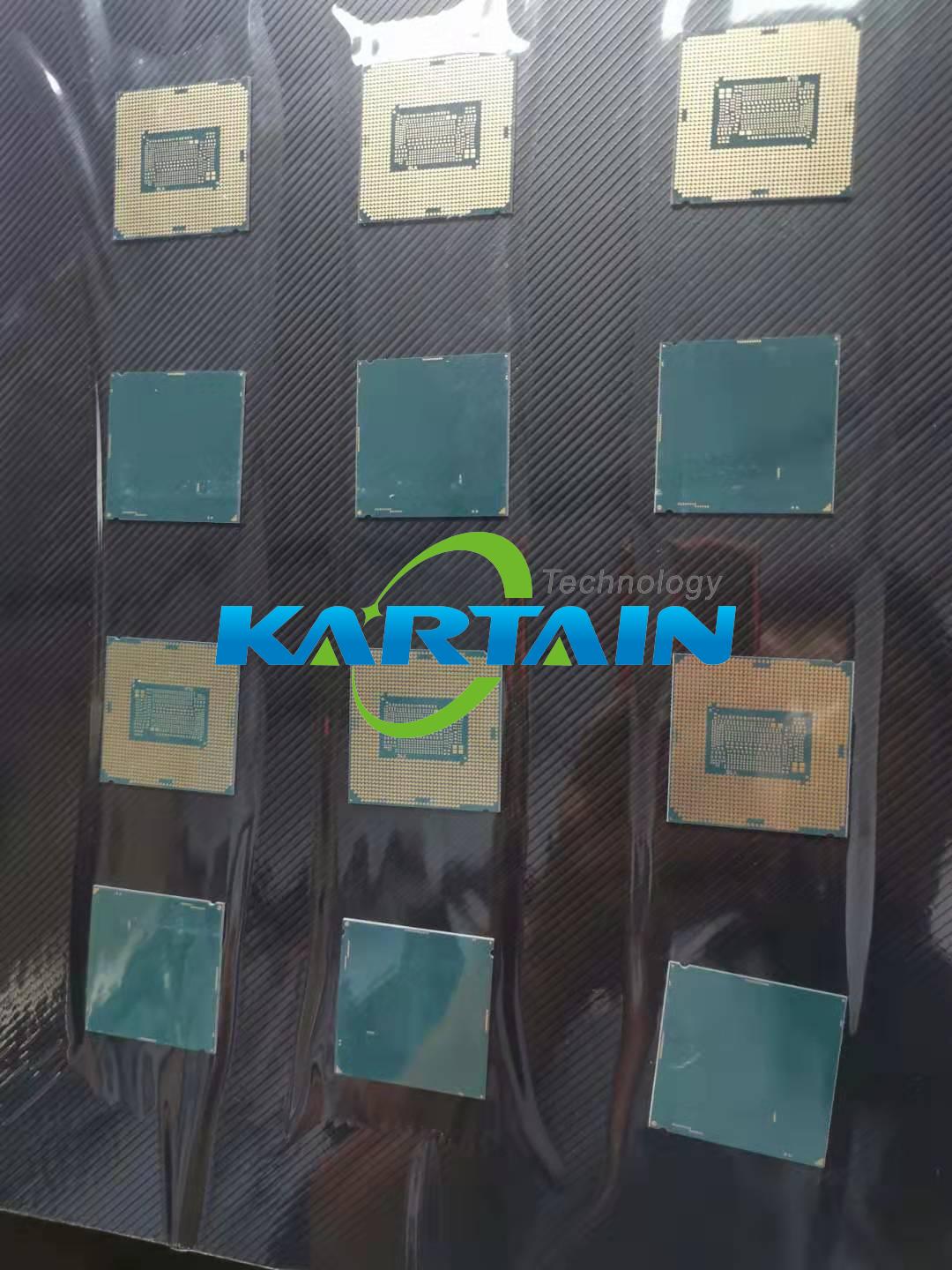

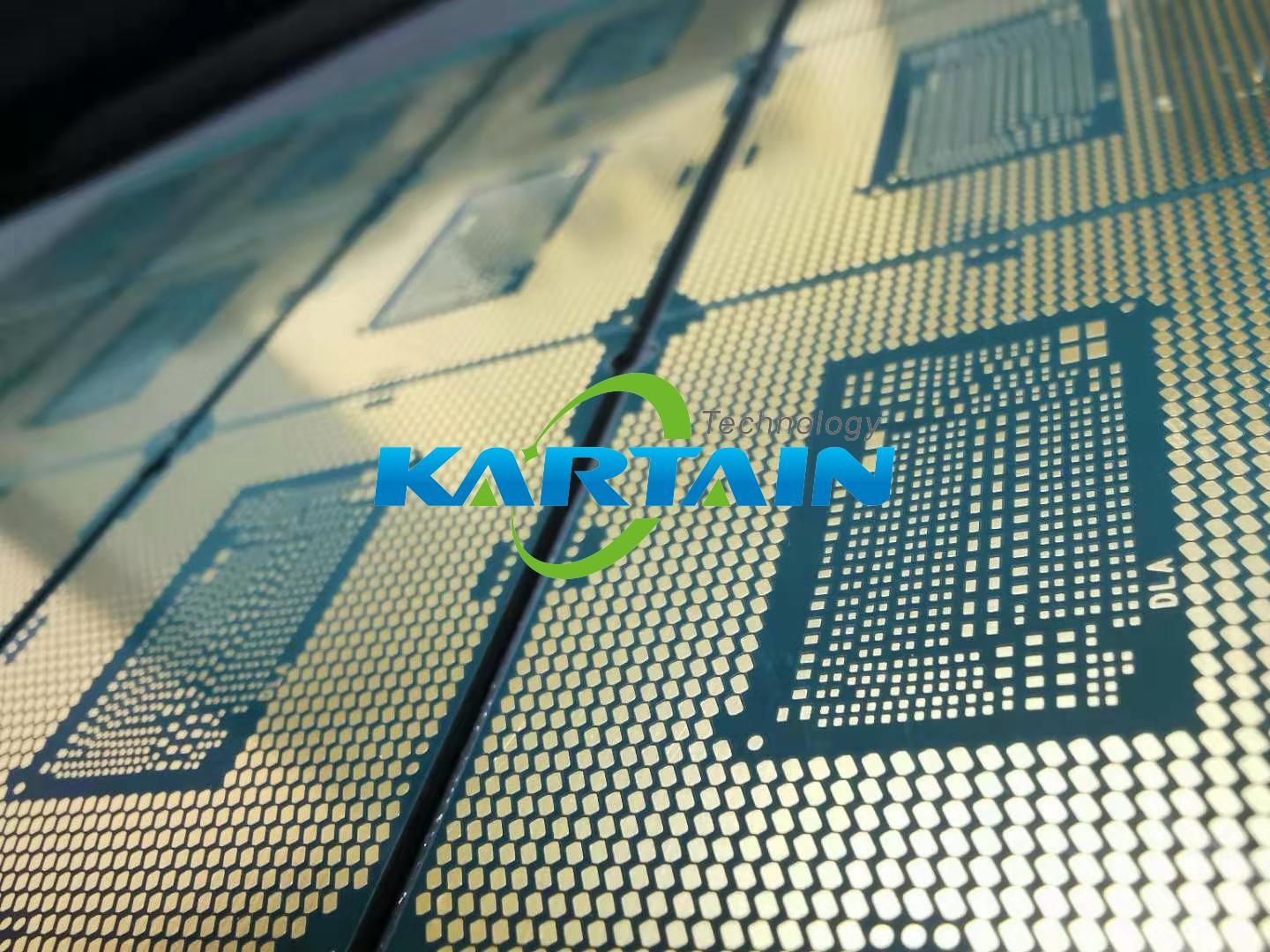

PBGA package pcb boards

Process capability
Item Capability
Material Shengyi,BT,Mitsubishi,Toshiba,LG
Layers 1-8layer
Min Boards thk 2layer--0.1mm
4layer--0.18mm
6layer--0.26mm
Min Vias/blind vias 100um/55um
Min Line spacing/Width 25um/25um
Copper Weight 8-35um,70um
Surface finished ENIG,NiPdAu,Immersion Silver
Soldermask Black Taiyo soldermask,White,Red,Yellow,Blue soldermask
Special technics Tenting/Etech back/Buss-less/MSAP/Plugged
Application

Semiconductor Integrated Circuit,MEMS,Antenna,Medical equipment,RAM,SD

,SSD,Camera,Fingerprint Recognition,IC substrate package
Min drilling vias 0.05mm
Min pad gap 0.05mm
IC substrate package UDP,CSP,SIP,FMC,LGI,PBGA,SSD,MEMS,MiniLED,SSOP,TSOP,QFP,TQFP
