LED sport lighting PCB fabrication

LED sport lighting PCB fabrication specification

1 Material IMS type  Aluminum,Copper,CEM3,FR4,Ceramic,BT,halogen-free
2 Material IMS Brand Ventec,Bergquist,POLYTRONICS,Shengyi,Boyu
3 Dielectric Thickness 50um,75um,100um,125um,180um,200um,230um
4 PCB Thicness 0.1mm-0.4mm bending,0.5mm-2.0mm standard,3.0mm above special
5 Copper weight 0.5oz-6oz standard, 6oz above special
6 Max length single layer less than 1800mm, double less than 1200mm
7 Soldermask Color White,Black,Green,Yellow,Blue standard, Silver,transparent,Orange available
8 Surface finished HASL,OSP,Immersion Gold,Immersion Silver,NiPdAu
9 Thermal Conductivity From 1.0W/MK to 8.0W/MK
10 Flammability UL 94-V0
11 Hi-Pot Withstand DC2000-10000V
12 Breakdown Voltage AC4000-13000V
13 Application Ultra bright LED Substrate,Power Conversion,PDP, LED, Regulator for TV,
Monitor Drives,Rectifier, Power Supply,Automative electronic

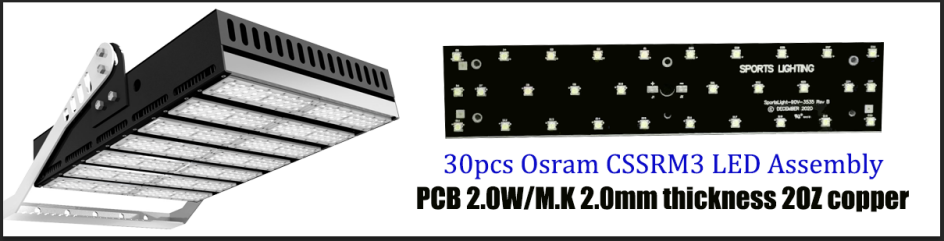

LED SPOT lighting pcb boards fabrication
