Location：Home--->Product Center >> Electrical Component sourcing >> IPBT-104-H1-T-S-K

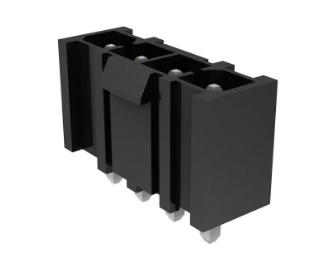

Name:IPBT-104-H1-T-S-K

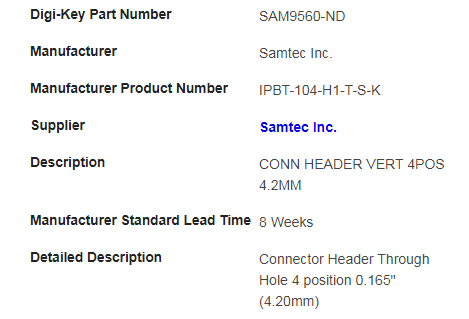

Manufacturer Product NumberIPBT-104-H1-T-S-K
Pitch - Mating0.165" (4.20mm)
Number of Positions4
Number of Rows1
Contact Length - Mating0.260" (6.60mm)
Contact Length - Post0.130" (3.30mm)
Overall Contact Length0.510" (12.95mm)
Insulation Height0.380" (9.65mm)
Email US:info@kartain.com

Product Description Contact Us

IPBT-104-H1-T-S-K

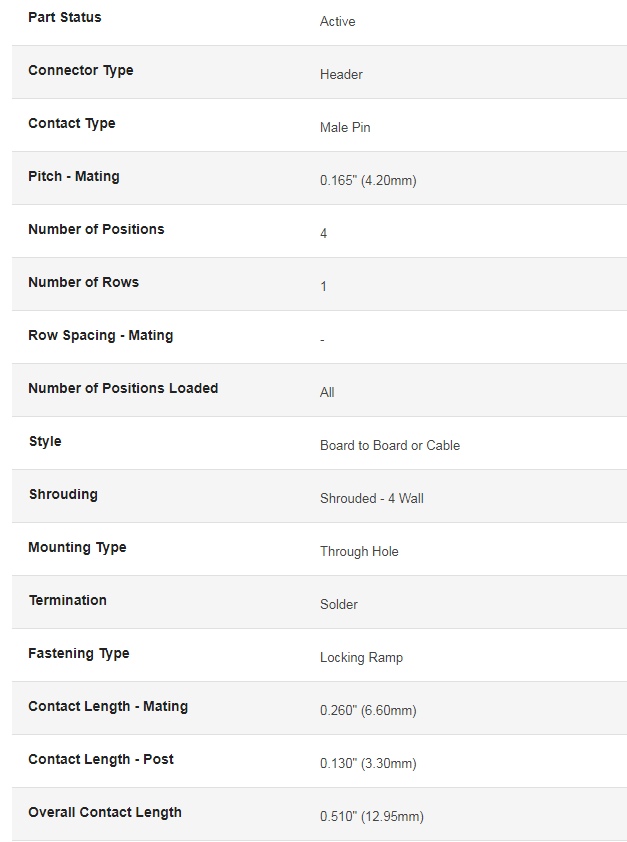

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.165" (4.20mm)
Number of Positions
4
Number of Rows
1
Row Spacing - Mating
-
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Locking Ramp
Contact Length - Mating
0.260" (6.60mm)
Contact Length - Post
0.130" (3.30mm)
Overall Contact Length
0.510" (12.95mm)
Insulation Height
0.380" (9.65mm)

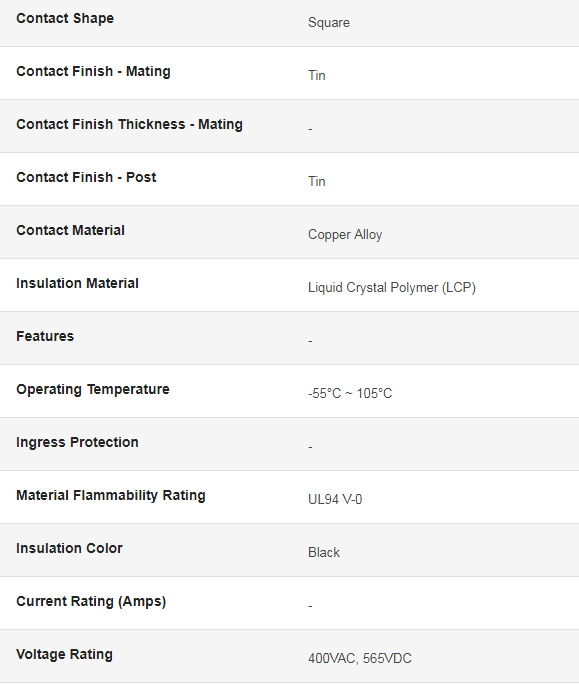

Contact Shape
Square
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
