Location：Home--->Product Center >> Electrical Component sourcing >> IPL1-102-01-L-D-RA-K

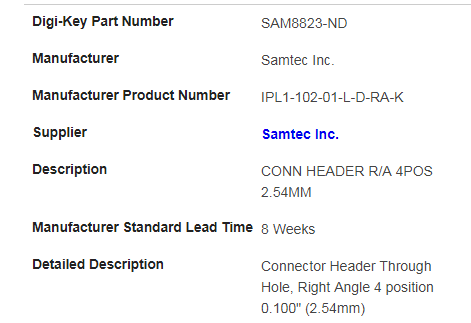

Name:IPL1-102-01-L-D-RA-K
Manufacturer Product NumberIPL1-102-01-L-D-RA-K
Pitch - Mating0.100" (2.54mm)
Number of Positions4
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Contact Length - Mating0.215" (5.46mm)
Contact Length - Post0.085" (2.16mm)
Insulation Height0.290" (7.37mm)
Email US:info@kartain.com

Product Description Contact Us

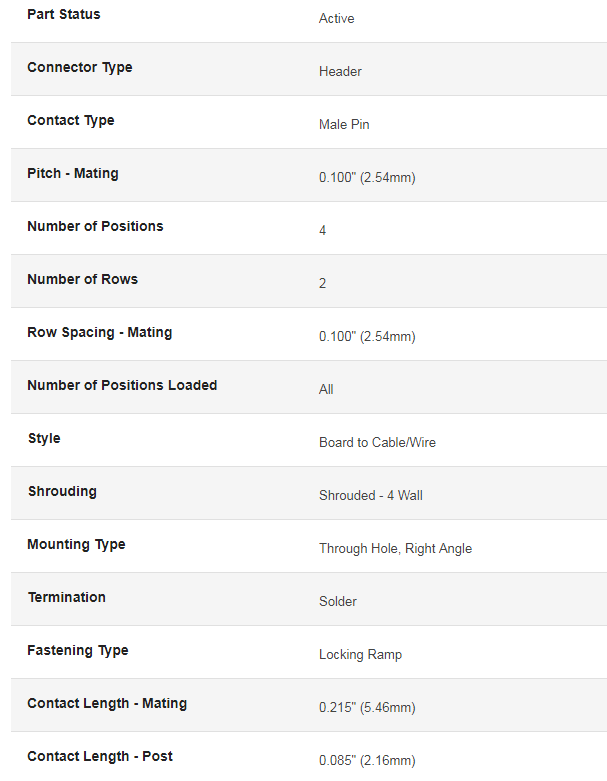

IPL1-102-01-L-D-RA-K
Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Positions
4
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Termination
Solder
Fastening Type
Locking Ramp
Contact Length - Mating
0.215" (5.46mm)
Contact Length - Post
0.085" (2.16mm)
Overall Contact Length
-

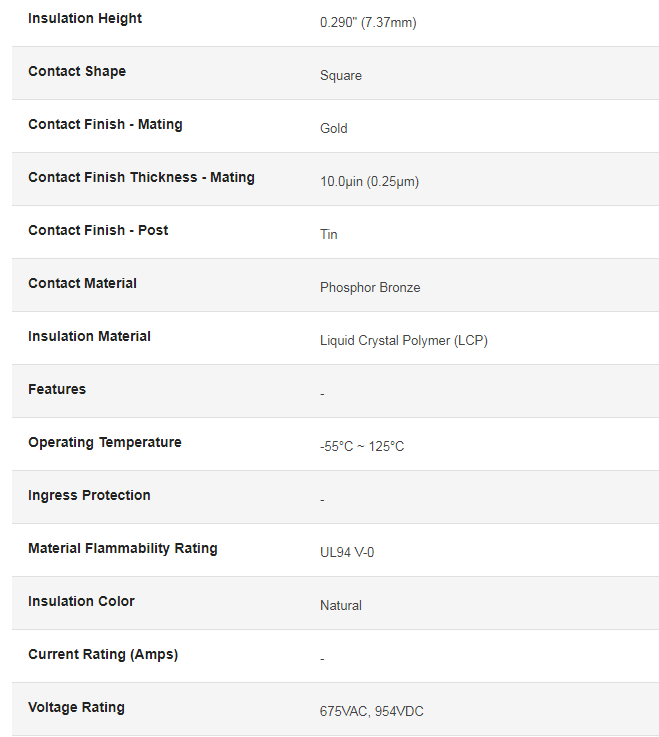

Insulation Height
0.290" (7.37mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
