Location：Home--->Product Center >> Electrical Component sourcing >> IPL1-102-01-L-S-K

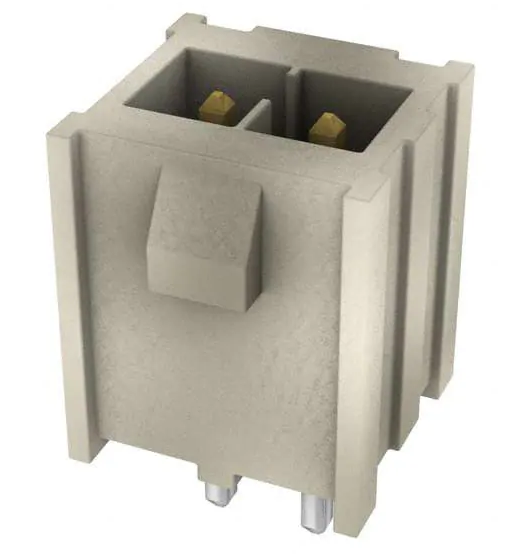

Name:IPL1-102-01-L-S-K

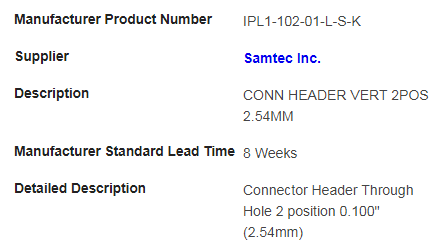

Manufacturer Product NumberIPL1-102-01-L-S-K
Number of Positions2
Number of Rows1
Voltage Rating675VAC, 954VDC
Insulation Height0.320"" (8.13mm)
Contact Length - Post0.120"" (3.05mm)
Contact Length - Mating0.215"" (5.46mm)
Email US:info@kartain.com

Product Description Contact Us

IPL1-102-01-L-S-K

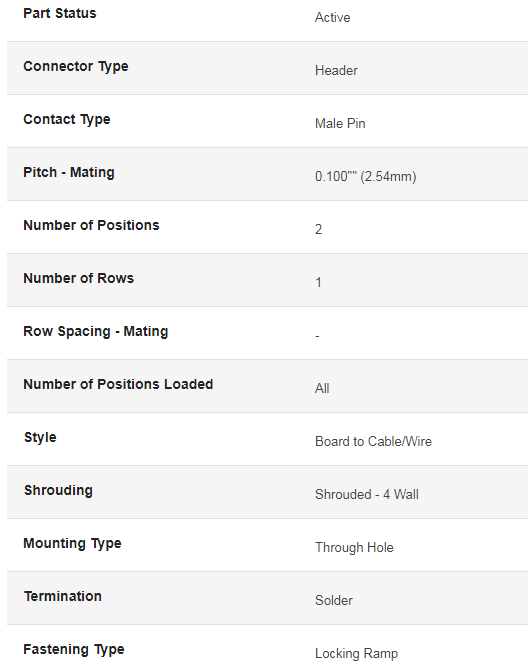

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100"" (2.54mm)
Number of Positions
2
Number of Rows
1
Row Spacing - Mating
-
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Locking Ramp

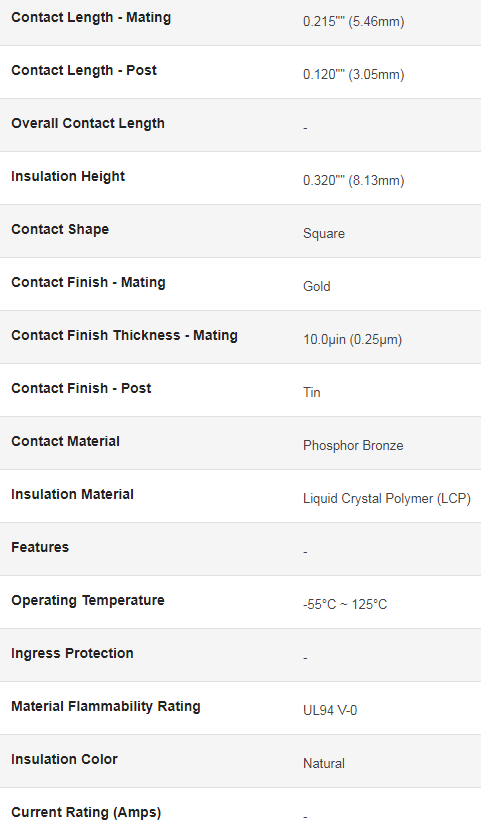

Contact Length - Mating
0.215"" (5.46mm)
Contact Length - Post
0.120"" (3.05mm)
Overall Contact Length
-
Insulation Height
0.320"" (8.13mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
