Location：Home--->Product Center >> Electrical Component sourcing >> FTSH-105-01-F-DV-K

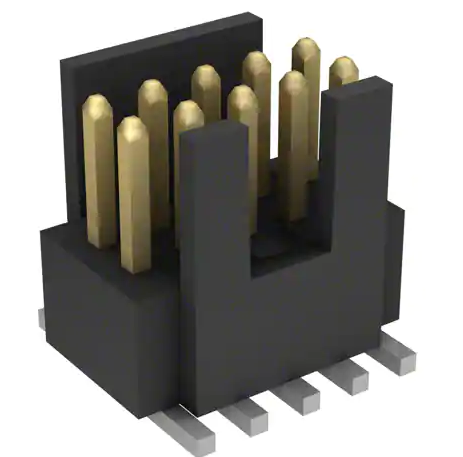

Name:FTSH-105-01-F-DV-K

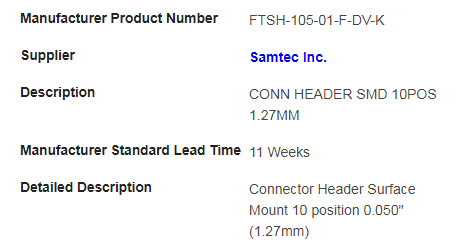

Manufacturer Product NumberFTSH-105-01-F-DV-K
Number of Positions10
Number of Rows2
Contact Length - Mating0.120"" (3.05mm)
Pitch - Mating0.050"" (1.27mm)
Insulation ColorBlack
Current Rating (Amps)3.4A per Contact
Email US:info@kartain.com

Product Description Contact Us

FTSH-105-01-F-DV-K

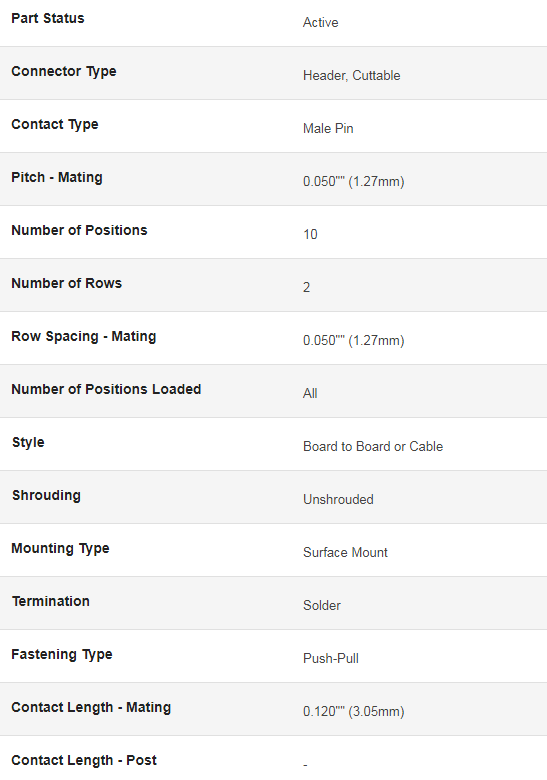

Part Status
Active
Connector Type
Header, Cuttable
Contact Type
Male Pin
Pitch - Mating
0.050"" (1.27mm)
Number of Positions
10
Number of Rows
2
Row Spacing - Mating
0.050"" (1.27mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Unshrouded
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.120"" (3.05mm)
Contact Length - Post
-
Overall Contact Length
-
Insulation Height
0.099"" (2.51mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
Keying Shroud
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
