Location：Home--->Product Center >> Electrical Component sourcing >> XPEBRO-L1-0000-00D01

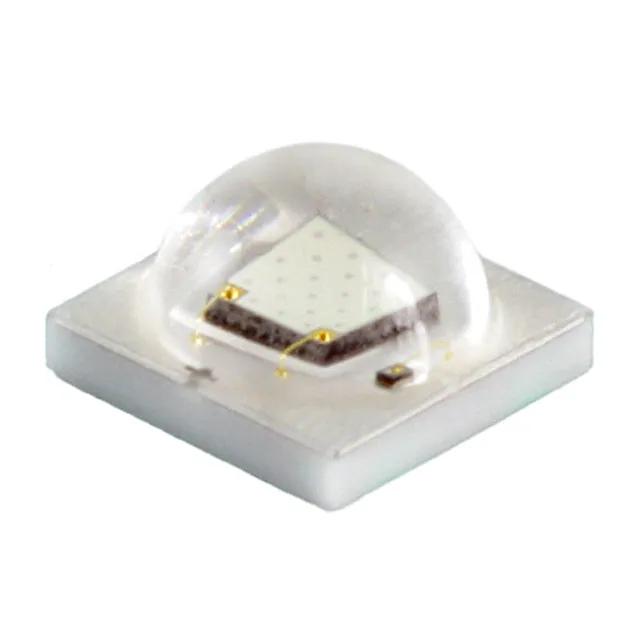

Name:XPEBRO-L1-0000-00D01
Part NOXPEBRO-L1-0000-00D01
MANUFACTURERCree
ColorRed Orange
Lens Dimensions (mm)3.06x3.06x1.53
Luminous Flux107lm(Min)
Dominant Wavelength (nm)620(Max)
MountingSurface Mount
Stock available9000pcs
Email US:info@kartain.com

Product Description Contact Us

XPEBRO-L1-0000-00D01 DESCRIPTION

MANUFACTURER

Cree

PRODUCT CATEGORY

LED

DESCRIPTION

LED Uni-Color Red Orange Automotive 2-Pin SMD EP T/R

XPEBRO-L1-0000-00D01" alt="XPEBRO-L1-0000-00D01" border="0" />

XPEBRO-L1-0000-00D01 Product Technical Specifications

EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8541.40.20.00
Type Uni-Color
Product Category Chip LED
Color Red Orange
Number of LEDs 1
Lens Shape Type Circular
Lens Dimensions (mm) 3.06x3.06x1.53
Mounting Orientation Top Mount
Luminous Flux 107lm(Min)
Dominant Wavelength (nm) 620(Max)
Viewing Angle (°) 130
Maximum Forward Current (mA) 1000
Test Current (mA) 1000
Maximum Forward Voltage (V) 2.6
Reverse Voltage (V) 5(Max)
Internal Protection No
Maximum Operating Temperature (°C) 150
Lead Standoff No
Supplier Color Red Orange
High Power Yes
High Brightness Yes
Packaging Tape and Reel
Standard Package Name SMD
Pin Count 2
Supplier Package SMD EP
Mounting Surface Mount
Package Length 3.45
Package Width 3.45
PCB changed 2
Lead Shape No Lead
