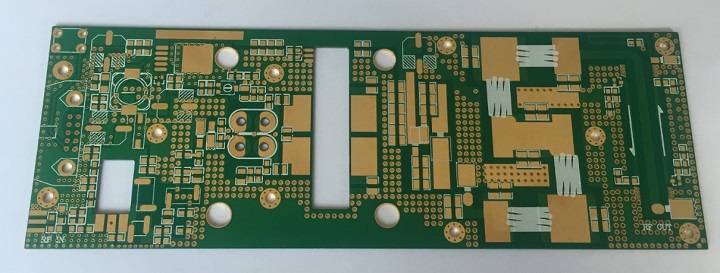

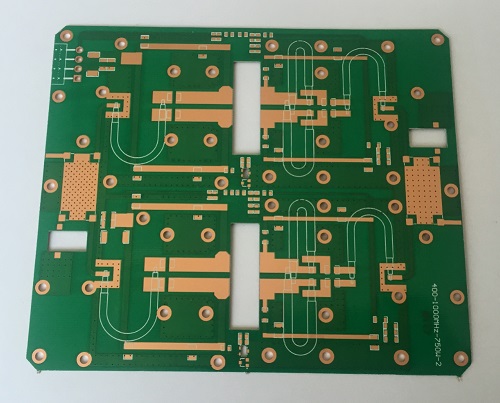

Name:Roger PCB for power amplifier
MaterialRoger 4350B
Thickness1.60mm
Layers2layer
Copper thickness35um
Surface finishedENIG
Line width/sapcing5mil/5mil
soldermaskGreen soldermask
Viasvia filled
Applicationpower amplifier
Email US:info@kartain.com

Product Description Contact Us

What is the High Frequency PCB ?
High Frequency PCB is a type of PCB used for signal transmission  in the variety of applications including mobile, microwave,
radio frequency and high speed design applications.
High Frequency boards come with high frequency laminates are difficult to fabricate because they need to maintain thermal
heat transfer of the application, in view of the sensitivity of the signal.

Applications for high frenqucy pcb PCBs

High frequency rigid and flex PCBs are used in many products and across many industries,

including:

Telecommunications

Military and aerospace

RF microwave

Automotive (mainly LIDAR, which is a mini radar that communicates a vehicle’s surroundings)

High-density interconnect and high-speed design applications

high frequency PCB capabilities:

Drill & Rout

Counter sinks/counter bores, Scoring/rout and retain, Laser route,

Blind vias/buried vias, Stacked vias

Lamination

1-30 layers, Vacuum lamination, Sequential lamination

Plating

Conductive via fill, Non-conductive via fill, Plated edges,

Plated radii (castellation), Plated milling cutouts, Hard gold body,

Soft bondable gold, Immersion gold, Immersion silver, HAL standard,

HAL lead-free (ROHS), ENTEK (OSP)

Materials

Flex and rigid-flex, Kapton™ and non-Kapton, RF and high-speed materials,

Mix materials/FR-4-Teflon, Metal back boards (LED/power distribution ),

Heavy Cu 6 oz. finish rigid and rigid-flex

The distinction between Rogers Material and an FR-4 Material

Rogers material is more expensive compared to an FR-4 material

The quality of a Rogers PCB material proves higher than an FR-4 material

A Rogers material possesses a lower dissipation factor (DF) compared to an FR-4 material and thus suffers lesser signal losses.

Rogers material possesses a wider Dk (dielectric constant) range than an FR-4 material and thus has more impedance stability.

A Rogers’s material contains a higher Dk of 6.15 to 11 compared to an FR-4 material that possesses a Dk of 4.5

A Rogers’s material also contains a better temperature or thermal management due to its limited variation than FR-4 material.

A Rogers’s material also improves the impedance control in a better way compared to an FR-4 material.

 Material  Er (10.0 GHz)  Thickness Tolerance  Copper Style  Multilayer Compatible  Loss Tangent
 Rogers Ultralam 2000  2.4 – 2.6  +/- .5 mil  ED / Rolled  No  .0019
 Rogers 5870  2.3  +/- .5 mil  ED / Rolled  No  .0012
 Rogers 5880  2.2  +/- .5 mil  ED / Rolled  No  .0009
 Rogers 6002  2.94  +/- .5 mil  ED / Rolled  YES  .0012
 Rogers 3003 3.0   +/- .5 mil  ED / Rolled  YES  .0013
 Rogers 6006  6.15  +/- .5 mil  ED / Rolled  No  .0019
 Rogers 6010  10.2  +/- .5 mil  ED / Rolled  No  .0023
 Rogers 3006  6.15  +/- 1 mil  ED / Rolled  YES  .0025
 Rogers 3010  10.2  +/- 1 mil  ED / Rolled  YES  .0035
5G High-frequency&High-speed Material List
ApplicationField MaterialBrand Type Standard Thickness Standard Panel Size

Production

Place

DCDk Df MaterialComposition
5G Amplifier Rogers R03003

0.005"(0.127mm)

.0.10"(0254mm),

0.020"(0.508mm),

0.030"(0.762mm),

0.060"(1.524mm)

12*18

18*24"

Suzhou,

China

3 0.001 PTFE+ceramic-fl led
Rogers R04350

0.0066(0.168)

.0.010"(0.254mm).

0.0133(0.338mm),

0.0166(0.422mm) ,

0.020"(0.508nun)

0.030"(0762mm)

0.060(1.524mm)

12*18".

18*24

36*48"

Suzhou,

China

3.48 0027 lass we in forced+Hydrocarbon+Ceramic-i led
Panasonic R5575 0.102mm-0.762mm

48*36

48*40",

48*42"

Guangzhou,China 3.92648 Polyp hey leneether(PPO/PPE)
FSD 888T 0.508mm0.762mm 48*36”

Suzhou

China

3.48 0.002 Nano ceramic
Sy tech Mm wave 77

0.005(0.127mm)

0.010"(0.254mm)

.0020(0508mm)

12*18"

18*24

36*48"

42*48”

Dongguan,China 3 0.0012 PTFE
TUC Tu-1300E

0.0040.005

00066",

0.010%0.0120.0150.0200030”

48*36

40”48



Tai warhina 3.57 00036 Hydrocarbon
Vente c VT-870L300

0.020”(0.508mm)

0.030(0.762mm),

0.040"(1.016mm),

0.060"(1.524mm)

48*36

48*40

48*42

Suzhou,

China

3 00027 Hydrocarbon
Vente c VT-870H348

0.0033(0.08mm)

0.004"(0.10mm)

0.0066"(0.168mm),

0.010”(0.254mm).

0.0166”(0.420mm)0.020"(0.508mm),

0.030"(0.762mm),0.040"(1016mm)

48*38

48*40"

48-42

Suzhou,

China

3.48 0.0037 Hydrocarbon
5G Antenna Rogers 4730JXR

0.0207"(0.526mm).00367(0.780mm)

,0.04071034mm)0.0607"(1542mm)

12*18"

18*24

36*48"

42*48”

Suzhou,

China

3 0.0027 Glass-reinforced+HydrocarbonCeramic-il led_
Rogers 4730G3

0.0057(0.145mm).

0107(0272mm)

0.02070.526mm10.0307

0.780mm

)0.0403(1034hm)

0.0607542mm)

12"*18"

18"*24"

36"*48",

42"*48"

Suzhou,

China

3 0.0029 Glass-reinforced+HydrocarbonCeramic-il led
Panasonic R5575 0.102mm-0.762mm

48*36"

48*40",

48*42”

Guangzhou,China 36 00048 Polyp hey lenee the(PPO/PPE)
FSD 888T 0.508mm0.762mm 48*36"

Suzhou

China

348 0.002 Nano ceramic
Sy tech A eaw rave 300

0.008"(0.203mm)-0.012(0.304mm

)0.020(0.508mm)-0.030"(0.762mm)

0.032"(0.813mm)-0.040"(1.016mm)

0.060"(1.524mm)

36*48

42*48”

Dongguan,China 3 0.0031 Polyp hey leneether(PPO/PPE)
UC TU-1300N

0.020(0.508mm)-0.030"(0.762mm

)0.040*(1.016mm)-0.060""(1.524mm)

36*48,

40*48"

42*48

Taiwan,

China

315 00021 Hydrocarbon
Vente c VT-870L300 0.020”(0.508mm),0.030"(0.762mm),0.040"(1.016mm),0.060"(1.524mm)

48*3

648*40

48*42"

Suzhou,

China

3 00027 Hydrocarbon
Vente c VT-870L330 0.020(0.508mm),0.030°(0.762mm),0.040"(1.016mm),0.060"(1.524mm)

48*36

.48*40"

48*42

Suzhou,

China

3.3 0.0025 Hydrocarbon
Vente c VT-870H348

0.0033(0.08mm),0.004(0.10mm

)0.0066”(0.168mm),0.010(0.254mm),0.0166”(0.420mm),0.020(0.508mm),0.030"(0.762mm),0.040"(1016mm)

48*36"

48*40",

48*42"

Suzhou,

China

3.48 0.0037 Hydrocarbon
5G HighSpeedModule Rogers 4835T 0.0025(0.064mm),0.0030(0.076mm)0.0040"(0.101mm)

12*18

18*24"

Suzhou,

China

3.33 0.003 Hydrocarbon+Ceramic-il led
Panasonic R5575G 0.05mm-0.75mm

48*36

48*40”,

48*42

Guangzhou,China 3.63 0.004 Polyp hey leneether(PPO/PPE)
Panasonic R5585GN 0.05mm-0.75mm

48*36"

48*40”

48*42

Guangzhou.

China

3.35 002 Polyp hey leneether(PPO/PPE)
Panasonic R5375N 0.05mm-0.75mm

48*3

648*40",

48*42”

Guangzhou,China 33 00027 Polyp hey leneether(PPO/PPE)
FSD 888T 0.508mm0.762mm 48*36" Suzhou,China 3.48 0.002 Nano ceramic
Sy tech S6 0.05mm-2.0mm

48*36"

48*40"

48*42”

Dongguan,China 3.58 00036 Hydrocarbon
Sy tech S6N 0.05mm-2.0mm

48*36"

48*40”

48*42"

Dongguan,China 3.25 0.0021 Hydrocarbon
