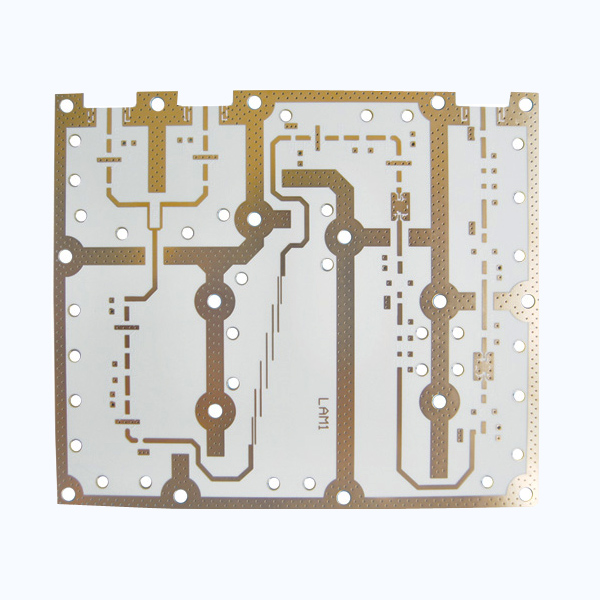

Product Description Contact Us
Layers: 1-28L
Material: Rogers,Alron,ITEQ
Maximum size: 610*1200mm
Minimum line/space: 0.1mm
Board thickness: 0.125-6.0mm
Out layer copper thickness: 17-175um
Inner layer copper thickness: 17-175um
Mini solder mask bridge: 0.05mm
Board outline tolerance: ±0.15mm
Thickness tolerance: t≥0.8mm: ±8%, t≤0.8mm: ±10%
Hole position/hole tolerance: ±0.05, PTH: ±0.076, NPTH: ±0.05mm
Minimum drilling hole (mechanical): 0.2mm
Minimum laser hole: 0.1mm
Mini hole ring (single): 0.075mm
Surface finish: HASL, lead free HASL, immersion gold, immersion tin, immersion silver, plated gold, OSP, carbon ink
Acceptable file format: all Gerber files, CAM-350, Protel, Pads 2000, CAD, ORCAD, P-CAD, CAM 2000
Quality standards: IPC-A-600F and MIL-STD-105D China GB4558
Packing: inner vacuum packing, outer standard carton box
CONTACT KARTAIN TECHNOLOGY
Kartain is committed to to provide you with exceptional support and satisfaction for your PCB fabrication and PCB assembly needs from QTA prototyping to High volume production.
Our experts are available to consult you for your project. So, call us anytime at 0755-23024958 or get in touch via email.
