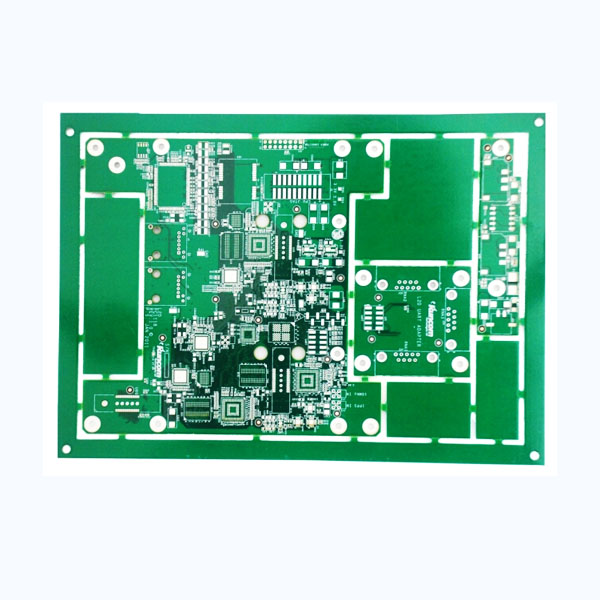

Name:12layers PCB Board
MaterialFr4
Board thickness1.6mm
Layers12layers
Email US:info@kartain.com

Product Description Contact Us

Process Capability for Multilayer PCB Board
Layers: 1-30L
Material: FR4
Maximum size: 600*500mm
Minimum line/space: 2mil
Board thickness: 0.125-6.0mm
Out layer copper thickness: 7OZ
Inner layer copper thickness: 7OZ
Mini solder mask bridge: 3mil
Board outline tolerance: ±0.15mm
Thickness tolerance: t≥0.8mm: ±8%, t≤0.8mm: ±10%
Hole position/hole tolerance: ±0.05, PTH: ±0.076, NPTH: ±0.05mm
Minimum drilling hole (mechanical): 0.15mm
Minimum laser hole: 0.1mm
Mini hole ring (single): 3mil
Surface finish: HASL, lead free HASL, immersion gold, immersion tin, immersion silver, plated gold, OSP, carbon ink
Acceptable file format: all Gerber files, CAM-350, Portal, Pads 2000, CAD, ORCAD, P-CAD, CAM 2000
Quality standards: IPC-A-600F and MIL-STD-105D China GB4558
Packing: inner vacuum packing, outer standard carton box
