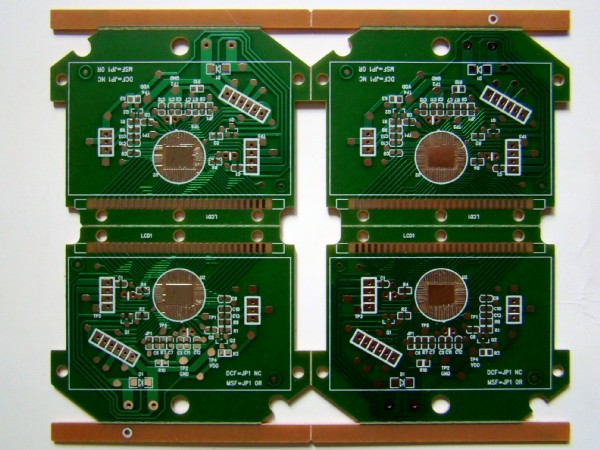

Customized high quality multilayer PCB boards

Layers: 1-28L

Material: FR4

Maximum size: 610*1200mm

Minimum line/space: 0.1mm

Board thickness: 0.125-6.0mm

Out layer copper thickness: 17-175um

Inner layer copper thickness: 17-175um

Mini solder mask bridge: 0.05mm

Board outline tolerance: ±0.15mm

Thickness tolerance: t≥0.8mm: ±8%, t≤0.8mm: ±10%

Hole position/hole tolerance: ±0.05, PTH: ±0.076, NPTH: ±0.05mm

Minimum drilling hole(mechanical): 0.2mm

Minimum laser hole: 0.1mm

Mini hole ring(single): 0.075mm

Surface finishing: HASL, lead free HASL, immersion gold, immersion tin, immersion silver, plated gold, OSP, carbon ink

Acceptable file format: all Gerber files,CAM-350, Protel, Pads 2000, CAD, ORCAD, P-CAD, CAM 2000

Quality standards: IPC-A-600F and MIL-STD-105D CHINA GB4558

Packing: inner vacuum packing, outer standard carton box
