Location：Home--->Product Center >> Electrical Component sourcing >> ULN2003AIPWR

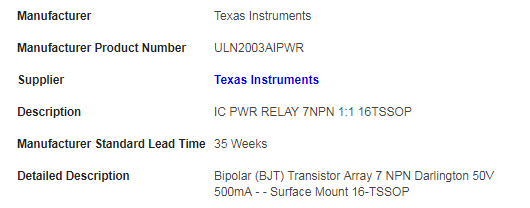

Name:ULN2003AIPWR
Manufacturer Product NumberULN2003AIPWR
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector Cutoff (Max)50µA
Vce Saturation (Max) @ Ib, Ic1.6V @ 500µA, 350mA
Supplier Device Package16-TSSOP
Operating Temperature-40°C ~ 105°C (TA)
Email US:info@kartain.com

Product Description Contact Us

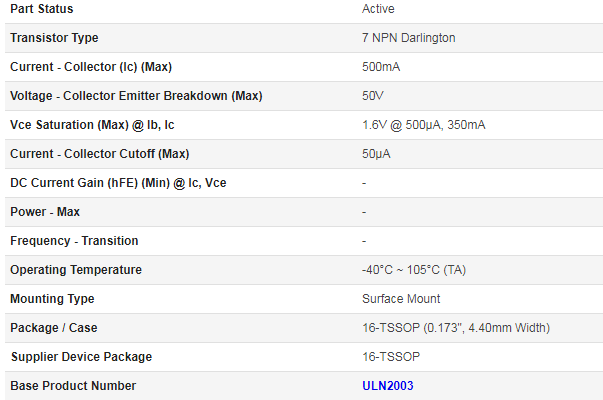

ULN2003AIPWR
Part Status
Active
Transistor Type
7 NPN Darlington
Current - Collector (Ic) (Max)
500mA
Voltage - Collector Emitter Breakdown (Max)
50V
Vce Saturation (Max) @ Ib, Ic
1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)
50µA
DC Current Gain (hFE) (Min) @ Ic, Vce
-
Power - Max
-
Frequency - Transition
-
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
16-TSSOP
Base Product Number
ULN2003
