Location：Home--->Product Center >> Electrical Component sourcing >> MTLW-112-06-G-D-140

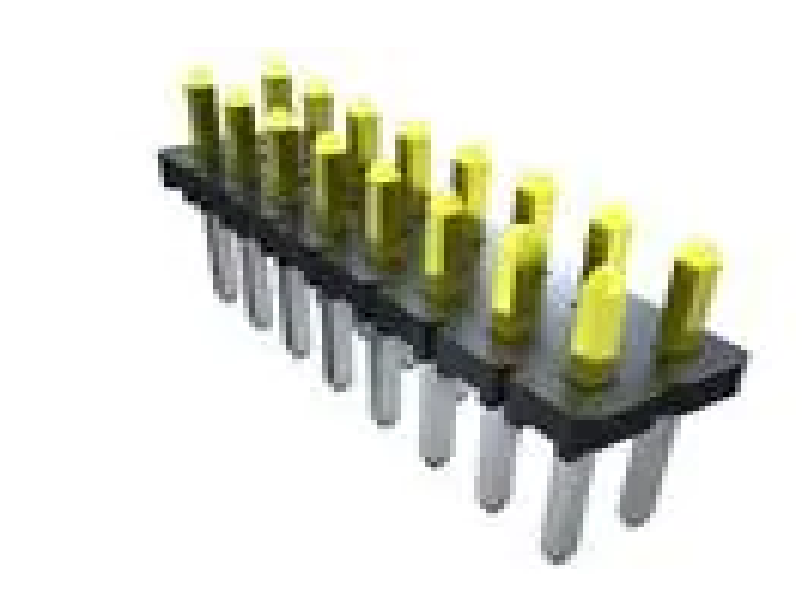

Name:MTLW-112-06-G-D-140

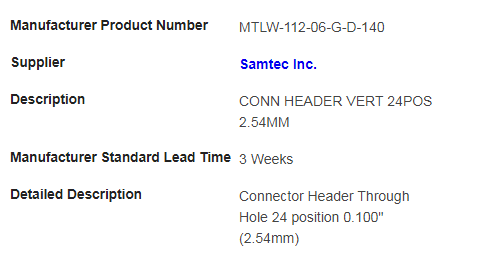

Manufacturer Product NumberMTLW-112-06-G-D-140
Pitch - Mating0.100"" (2.54mm)
Number of Positions24
Number of Rows2
Row Spacing - Mating0.100"" (2.54mm)
Contact Length - Mating0.140"" (3.56mm)
Contact Length - Post0.100"" (2.54mm)
Overall Contact Length0.300"" (7.62mm)
Insulation Height0.060"" (1.52mm)
Email US:info@kartain.com

Product Description Contact Us

MTLW-112-06-G-D-140

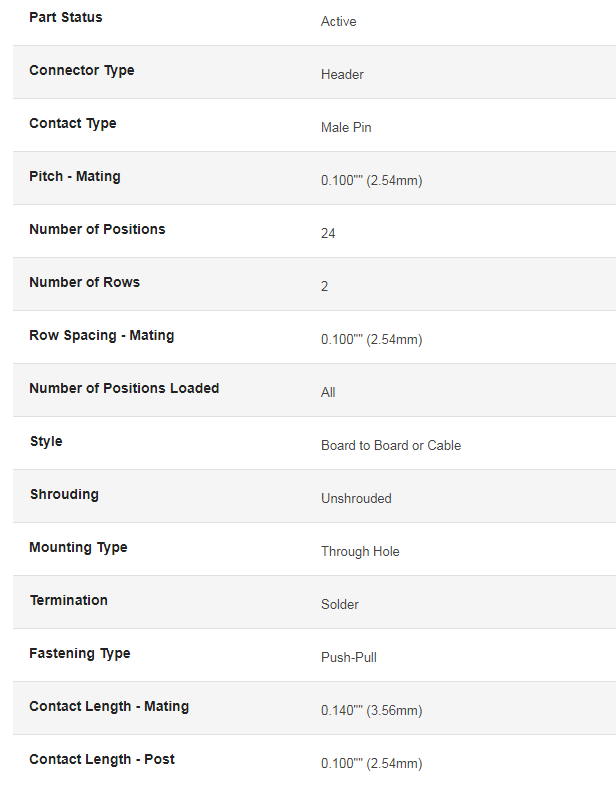

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100"" (2.54mm)
Number of Positions
24
Number of Rows
2
Row Spacing - Mating
0.100"" (2.54mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Unshrouded
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.140"" (3.56mm)
Contact Length - Post
0.100"" (2.54mm)

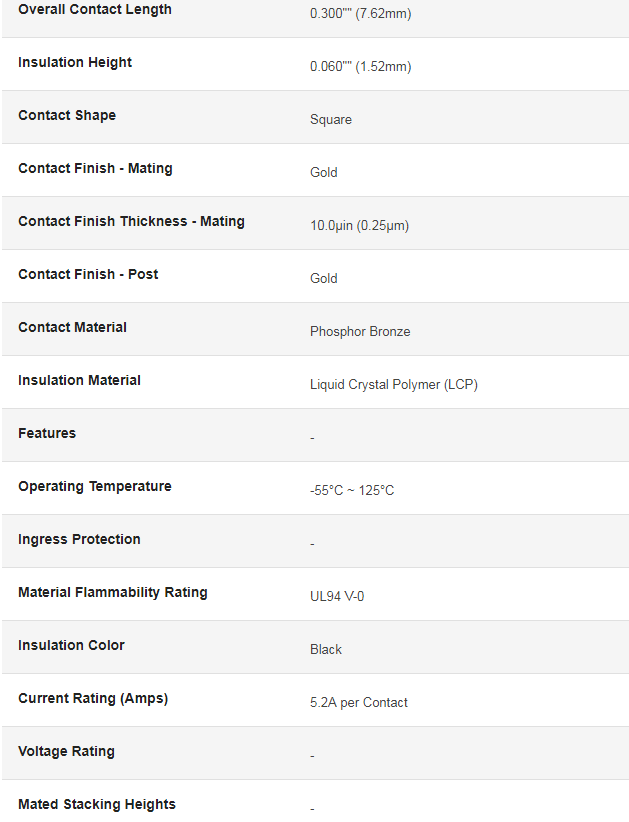

Overall Contact Length
0.300"" (7.62mm)
Insulation Height
0.060"" (1.52mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Gold
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
