Location：Home--->Product Center >> Electrical Component sourcing >> TSW-120-05-T-D

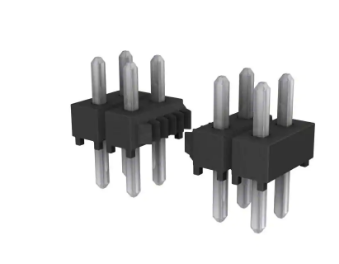

Name:TSW-120-05-T-D

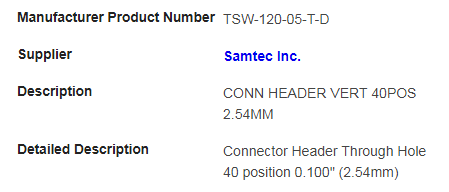

Manufacturer Product NumberTSW-120-05-T-D
Pitch - Mating0.100"" (2.54mm)
Number of Positions40
Number of Rows2
Row Spacing - Mating0.100"" (2.54mm)
Contact Length - Mating0.105"" (2.67mm)
Contact Length - Post0.130"" (3.30mm)
Insulation Height0.100"" (2.54mm)
Email US:info@kartain.com

Product Description Contact Us

TSW-120-05-T-D

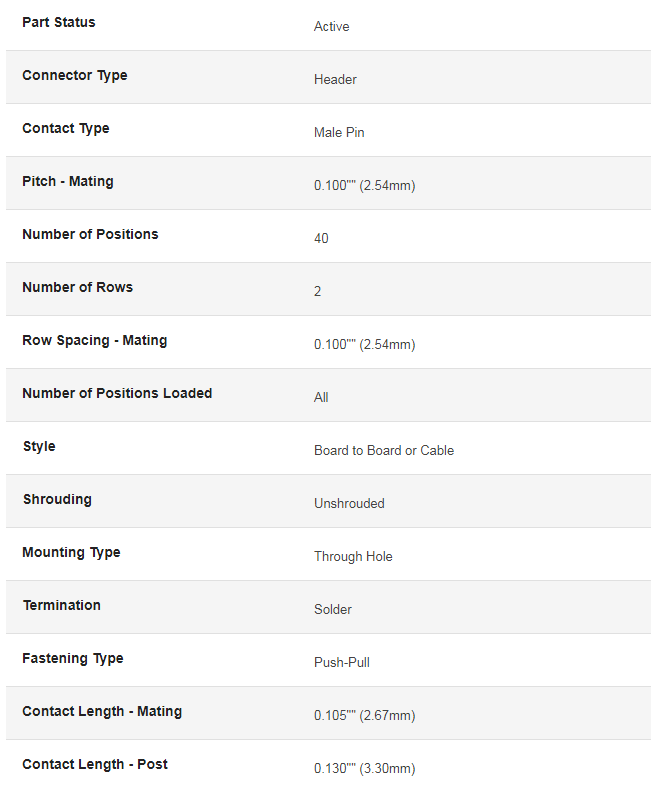

Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100"" (2.54mm)
Number of Positions
40
Number of Rows
2
Row Spacing - Mating
0.100"" (2.54mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Unshrouded
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.105"" (2.67mm)
Contact Length - Post
0.130"" (3.30mm)

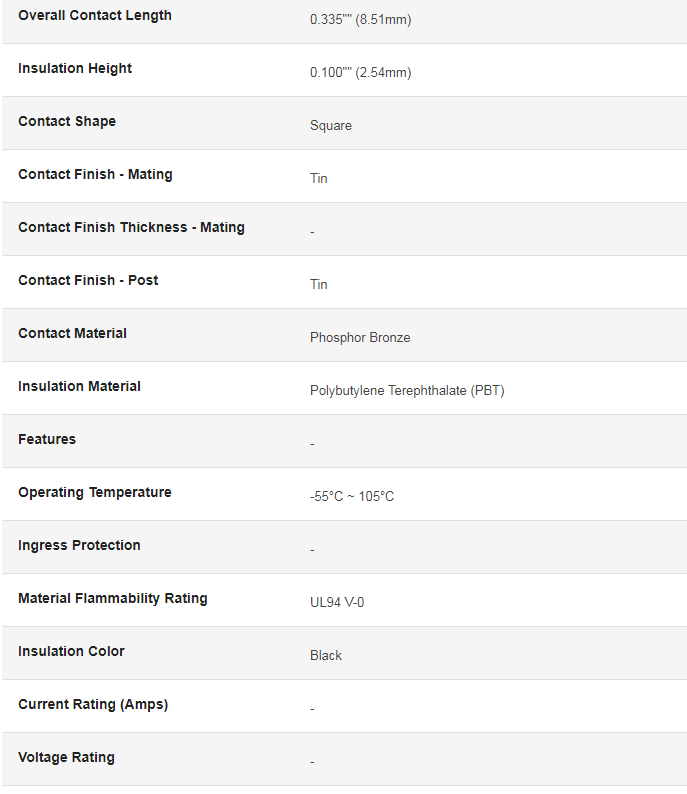

Overall Contact Length
0.335"" (8.51mm)
Insulation Height
0.100"" (2.54mm)
Contact Shape
Square
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Polybutylene Terephthalate (PBT)
Features
-
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
