Location：Home--->Product Center >> Electrical Component sourcing >> HLE-112-02-G-DV-BE

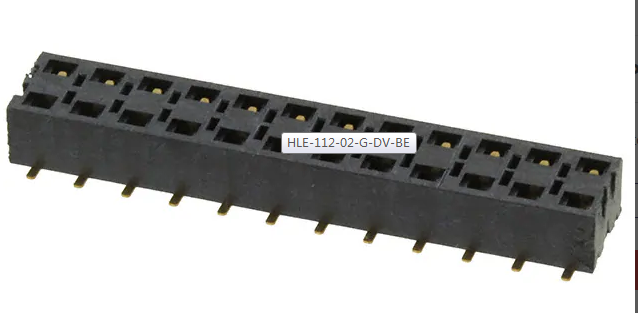

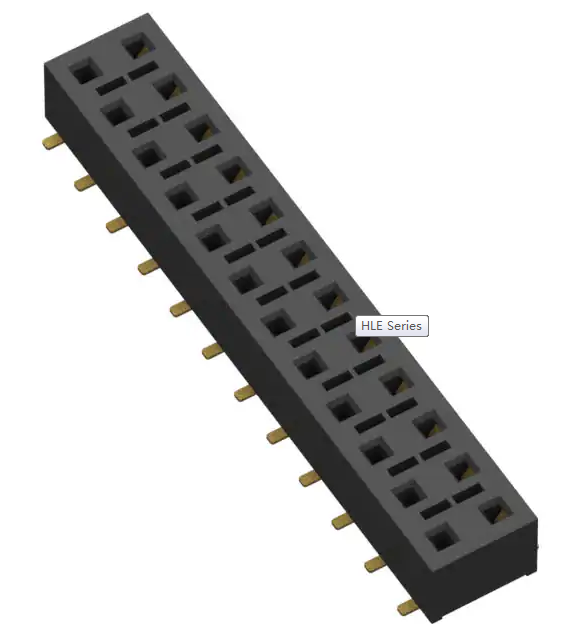

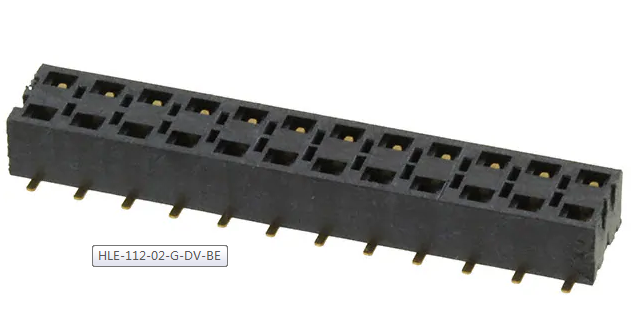

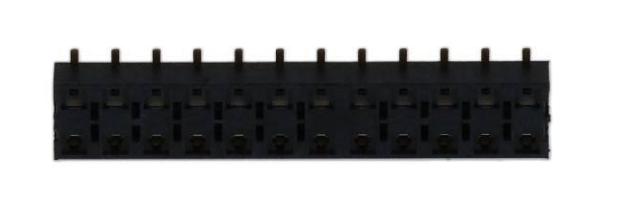

Name:HLE-112-02-G-DV-BE
Manufacturer Product NumberHLE-112-02-G-DV-BE
Number of Positions24
Pitch - Mating0.100"" (2.54mm)
Row Spacing - Mating0.100"" (2.54mm)
Insulation ColorBlack
Current Rating (Amps)4.1A per Contact
Voltage Rating400VAC
Number of Rows2
Email US:info@kartain.com

Product Description Contact Us

HLE-112-02-G-DV-BE


Part Status
Active
Connector Type
Receptacle, Bottom Entry
Contact Type
Female Socket
Style
Board to Board
Number of Positions
24
Number of Positions Loaded
All
Pitch - Mating
0.100"" (2.54mm)
Row Spacing - Mating
0.100"" (2.54mm)
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Insulation Color
Black
Insulation Height
0.144"" (3.66mm)
Contact Length - Post
-
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
-
Contact Finish - Post
Gold
Mated Stacking Heights
-
Ingress Protection
-
Features
-
Current Rating (Amps)
4.1A per Contact
Voltage Rating
400VAC
Applications
-
Insulation Material
Liquid Crystal Polymer (LCP)
