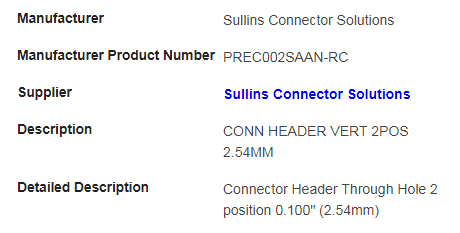

PREC002SAAN-RC
|
|---|

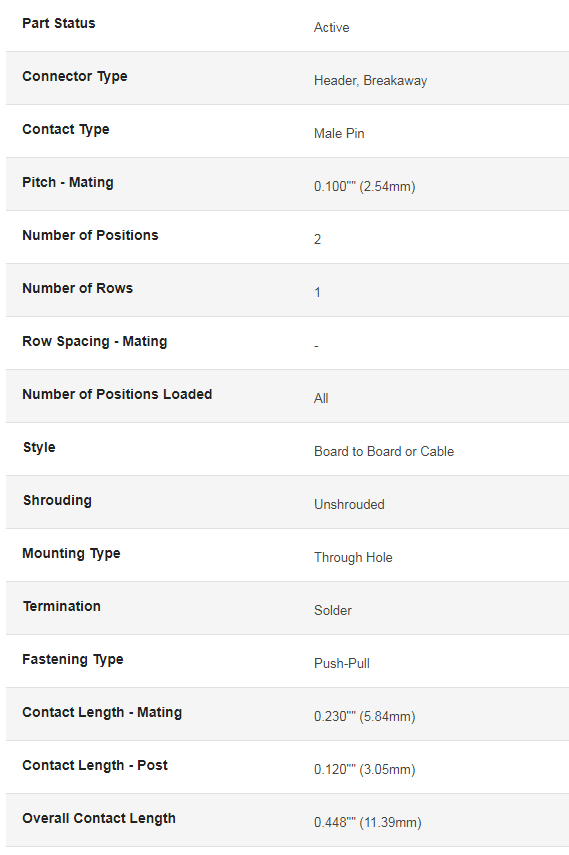

Part Status
|
Active
|
|||||||||
Connector Type
|
Header, Breakaway
|
|||||||||
Contact Type
|
Male Pin
|
|||||||||
Pitch - Mating
|
0.100"" (2.54mm)
|
|||||||||
Number of Positions
|
2
|
|||||||||
Number of Rows
|
1
|
|||||||||
Row Spacing - Mating
|
-
|
|||||||||
Number of Positions Loaded
|
All
|
|||||||||
Style
|
Board to Board or Cable
|
|||||||||
Shrouding
|
Unshrouded
|
|||||||||
Mounting Type
|
Through Hole
|
|||||||||
Termination
|
Solder
|
|||||||||
Fastening Type
|
Push-Pull
|
|||||||||
Contact Length - Mating
|
0.230"" (5.84mm)
|
|||||||||
Contact Length - Post
|
0.120"" (3.05mm)
|
|||||||||
Overall Contact Length
|
0.448"" (11.39mm)
|
|||||||||
Insulation Height
|
0.098"" (2.50mm)
|
|||||||||

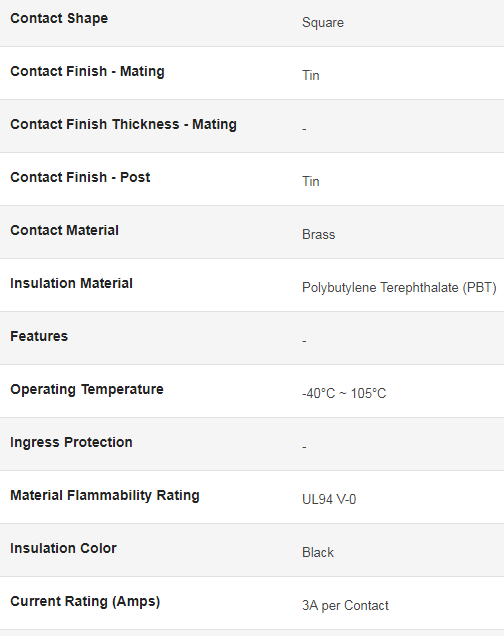

Contact Shape
|
Square
|
|||||||||
Contact Finish - Mating
|
Tin
|
|||||||||
Contact Finish Thickness - Mating
|
-
|
|||||||||
Contact Finish - Post
|
Tin
|
|||||||||
Contact Material
|
Brass
|
|||||||||
Insulation Material
|
Polybutylene Terephthalate (PBT)
|
|||||||||
Features
|
-
|
|||||||||
Operating Temperature
|
-40°C ~ 105°C
|
|||||||||
Ingress Protection
|
-
|
