Location：Home--->Product Center >> Electrical Component sourcing >> M20-7812045

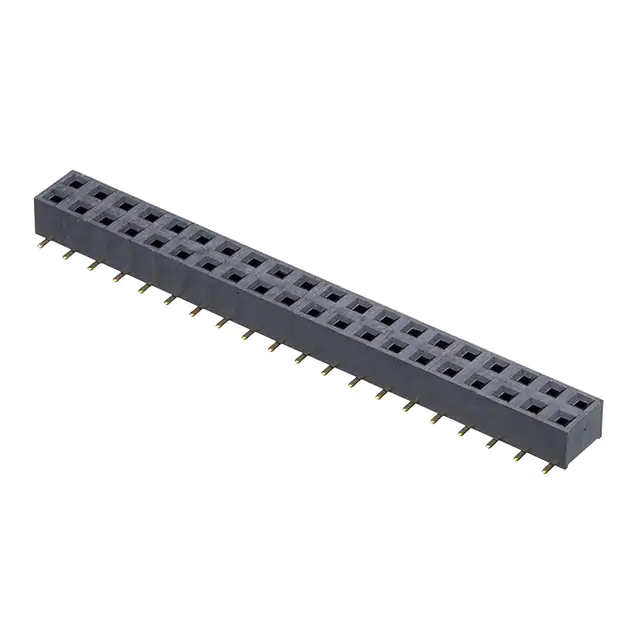

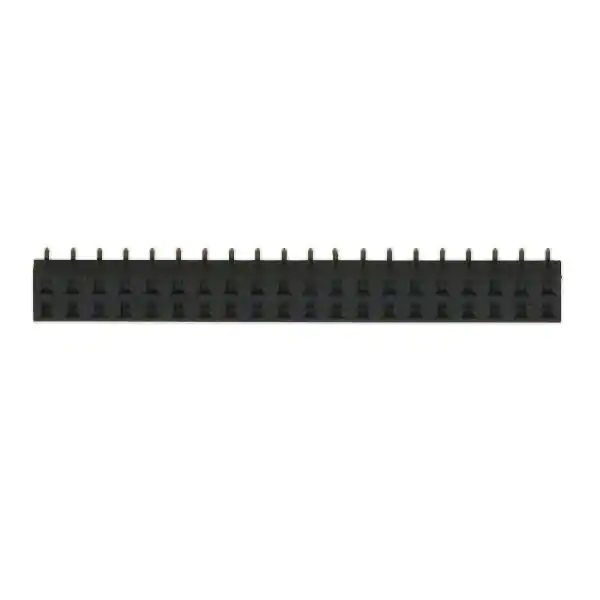

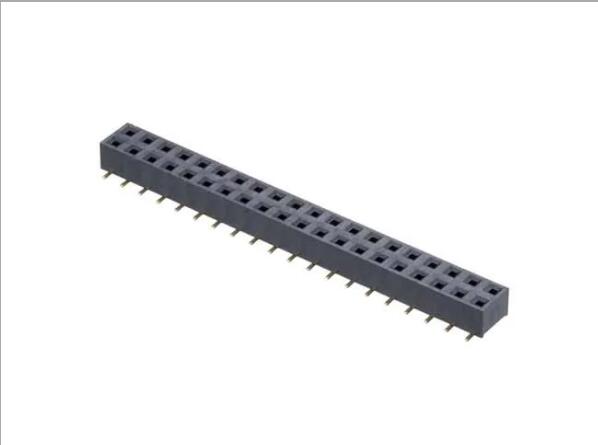

Name:M20-7812045
Part NOM20-7812045
DescriptionCONN RCPT 40POS 0.1 GOLD SMD
Number of Positions:40 Position
Pitch:2.54 mm
Number of Rows:2 Row
Email US:info@kartain.com

Product Description Contact Us

M20-7812045


RESOURCE TYPE LINK
Datasheets
Video File
Harwin’s Company Overview
Environmental Information M20-7812045.pdf" target="_blank" rel="noopener noreferrer" style="box-sizing:inherit;text-decoration-line:none;font-weight:bold;">RoHS Cert M20-7812045
HTML Datasheet M-20-781 Drawing
Product Attributes
TYPE
DESCRIPTION
SELECT
Category
Mfr
Harwin Inc.
Series
M20
Package
Tube
Part Status
Active
Connector Type
Receptacle, Bottom or Top Entry
Contact Type
Female Socket
Style
Board to Board
Number of Positions
40
Number of Positions Loaded
All
Pitch - Mating
0.100"" (2.54mm)
Row Spacing - Mating
0.100"" (2.54mm)
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
0.59µin (0.015µm)
Insulation Color
Black
Insulation Height
0.140"" (3.56mm)
Contact Length - Post
-
Operating Temperature
-40°C ~ 105°C
