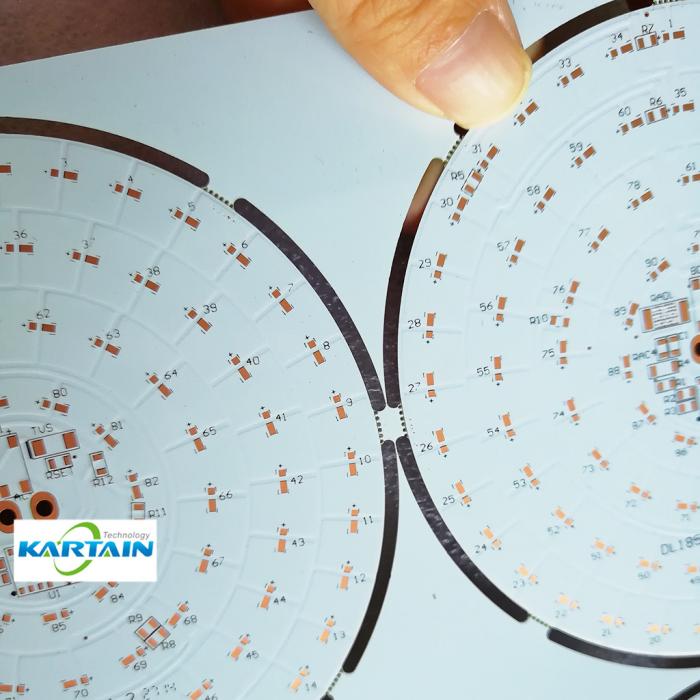

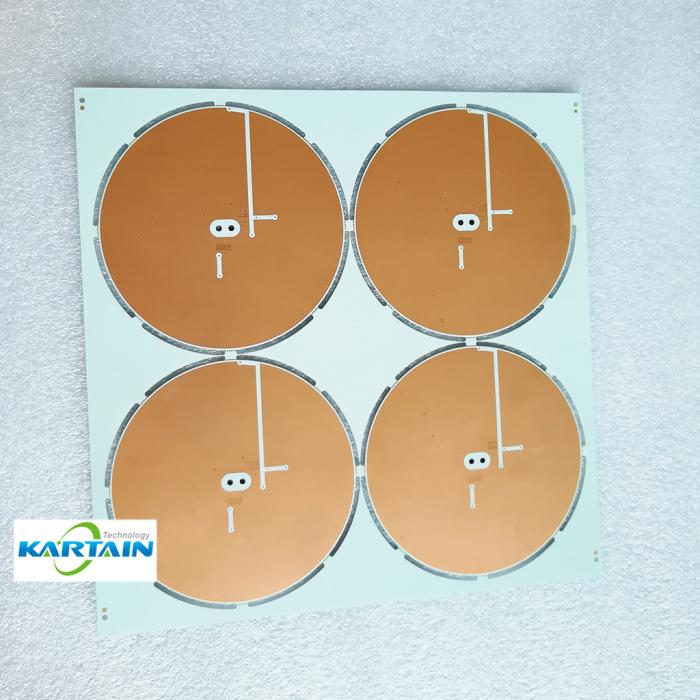

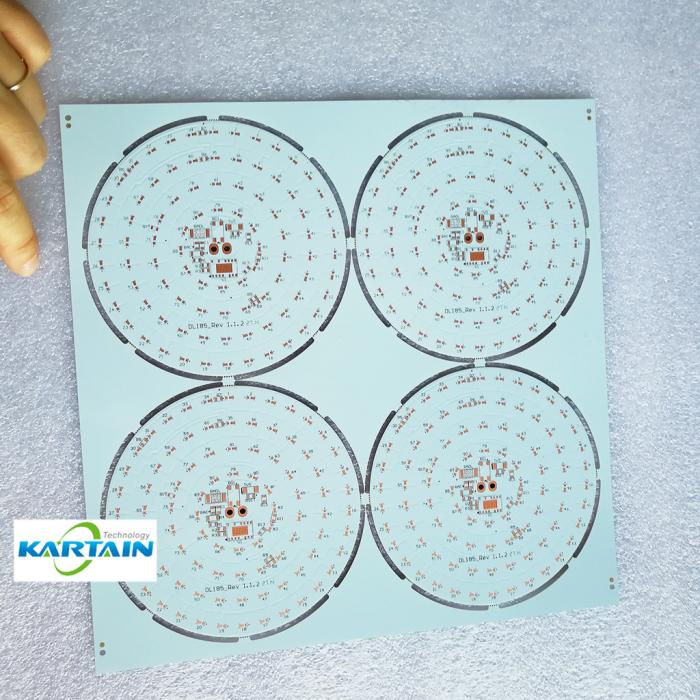

Name:0.2mm fr4 pcb board
Materialfr4
board thickness0.2mm
surface finishingOSP
Apply toled lighting
Email US:info@kartain.com

Product Description Contact Us

Process Capability for Ultra-thin PCB Board
Layers: 1-8L
Material: FR4
Maximum size: 480*1200mm
Minimum line/space: 3mil
Min Board thickness: 0.075mm
copper thickness:1/3OZ-2OZ
Board outline tolerance: ±0.1mm
Thickness tolerance: 2L +/-0.03mm;4L> +/-0.05mm
Minimum drilling hole (mechanical): 0.15mm
Minimum laser hole: 0.1mm
Surface finish:  lead free HASL, immersion gold, immersion tin, immersion silver, plated gold, OSP,
Acceptable file format: all Gerber files, CAM-350, Portal, Pads 2000, CAD, ORCAD, P-CAD, CAM 2000
Quality standards: IPC-A-600F and MIL-STD-105D China GB4558

Packing: inner vacuum packing, outer standard carton box
